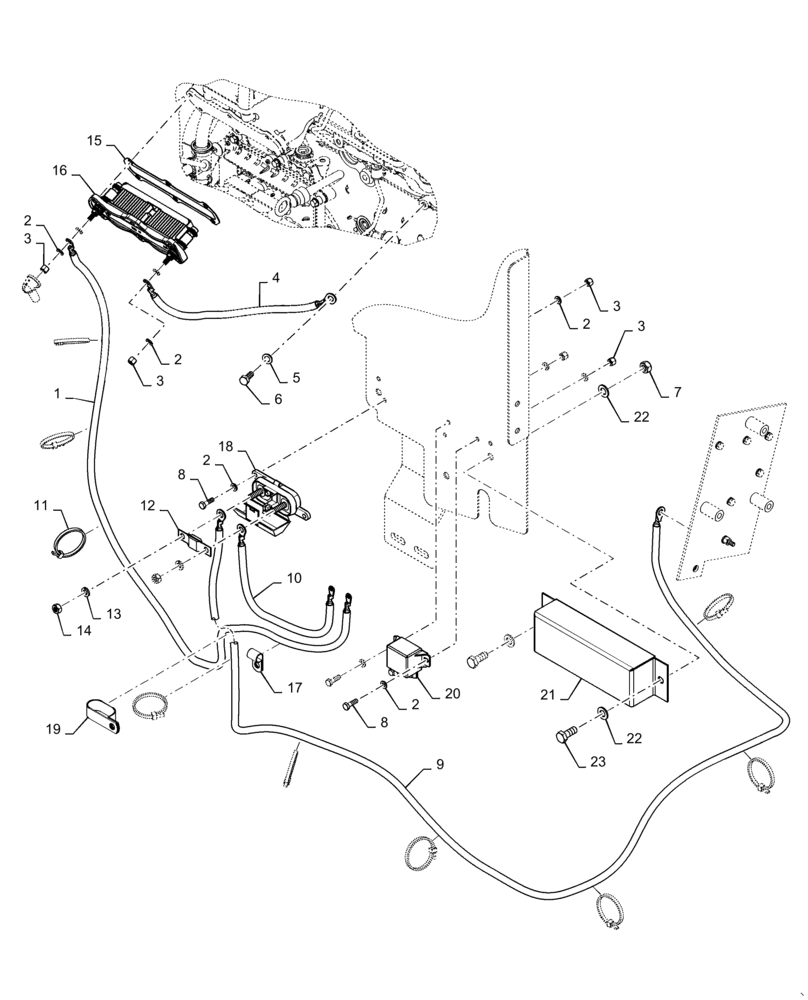

Запчасти Case 521F (55.202.01[01]) - GRID HEATER INSTALLATION (55) - ELECTRICAL SYSTEMS

1

87696487

ELECTRIC CABLE

Grid Heater Power

1шт.

2

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

3

832-10406

NUT,M6 x 1, Cl 8

6шт.

4

87398558

CABLE

Grid Heater Ground

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

Double

4шт.

9

87629629

ELECTRIC CABLE

Grid Heater B+

1шт.

10

87629628

ELECTRIC CABLE

Grid Heater Fused Power

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

9шт.

12

8501311

FUSE,150A, Megaval

1шт.

13

892-11008

LOCK WASHER,8mm ID

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

15

2854701

GASKET,0.8mm Thk

Air Intake

1шт.

16

87300128

HEATER,24V, 2400W

Iveco 24V

1шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

18

440038A1

JUNCTION BLOCK

Fuse

1шт.

19

R54363

CLAMP

1шт.

20

1546485C1

RELAY,24V

Power

1шт.

21

87644184

COVER

Grid Heater

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

23

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.
