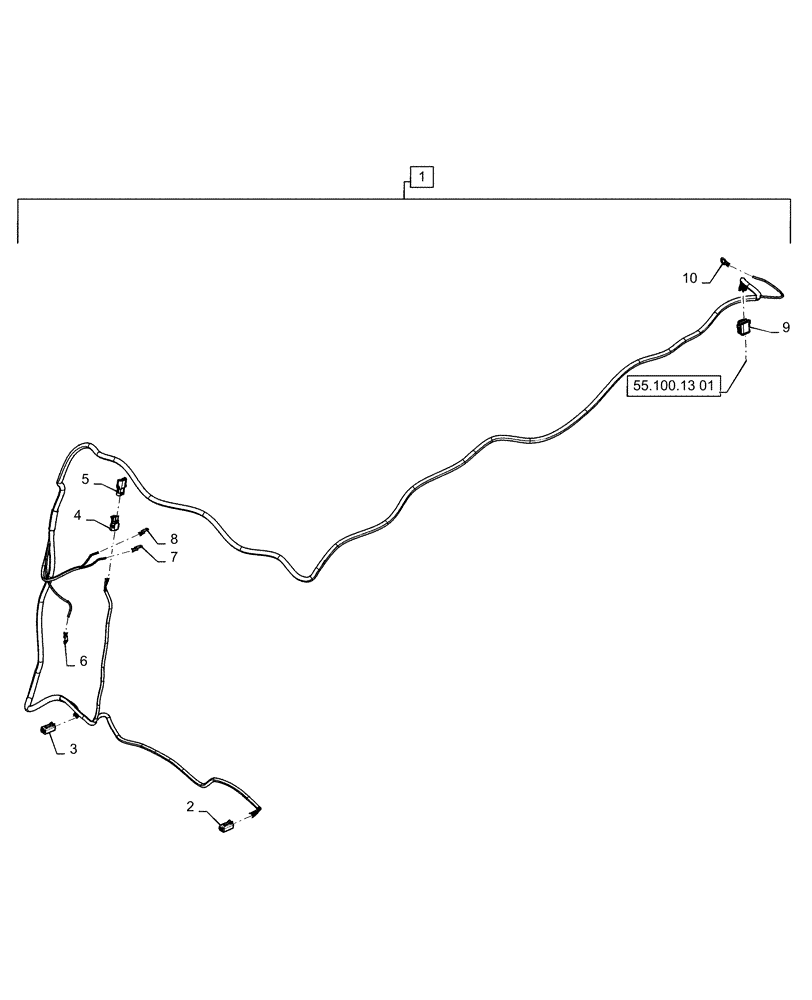

Запчасти Case 521F (55.100.13[03]) - HARNESS, REAR HOOD (55) - ELECTRICAL SYSTEMS

1

84546743

WIRE HARNESS

Rear Hood, Incl 2 - 10

1шт.

2

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

Combination Light, Rear, RH

1шт.

3

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

Combination Light, Rear, LH

1шт.

4

245482C1

ELEC CONNECTOR,2 Pin

License Plate Light

1шт.

5

245483C1

ELEC CONNECTOR,Male, 2 Pin

Cap

1шт.

6

1964716C1

TERMINAL CONNECTOR

Ring, 6mm, Rear Grill Ground

1шт.

7

1964702C1

TERMINAL CONNECTOR

Ring, 4mm, Back-up Alarm Relay Output

1шт.

8

1964702C1

TERMINAL CONNECTOR

Ring, 4mm, Back-up Alarm Ground

1шт.

9

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Hood to Engine Harness

1шт.

10

1964718C1

TERMINAL CONNECTOR

Ring, 10mm, Cooling Frame Ground

1шт.
