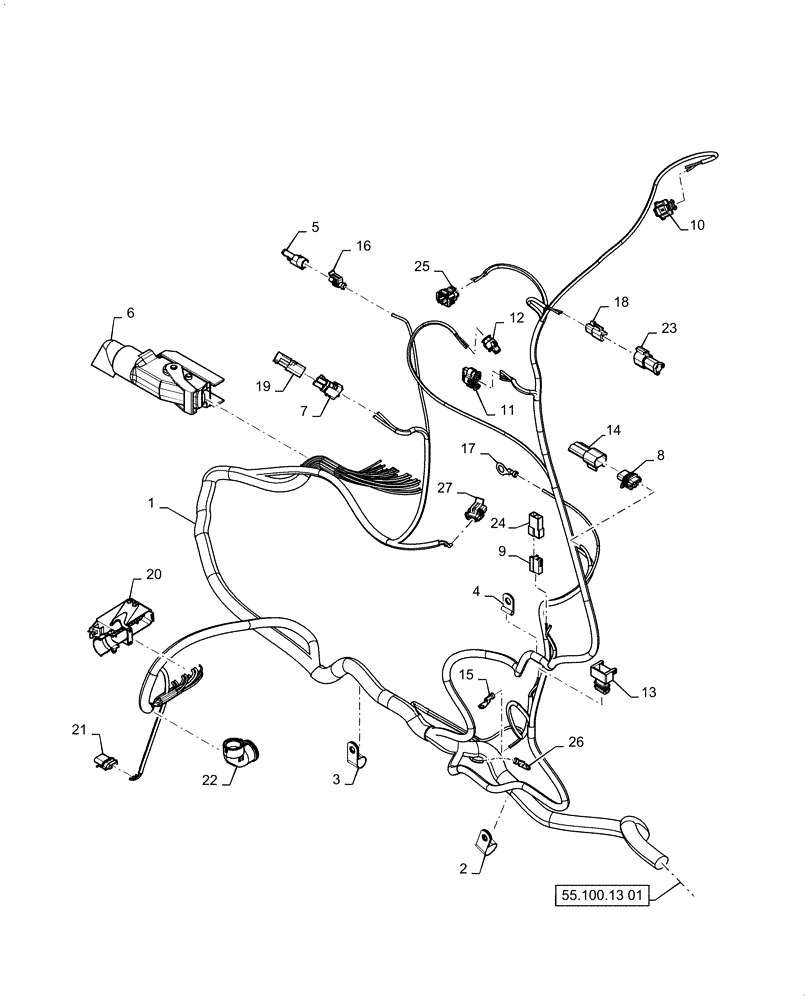

Запчасти Case 521F (55.100.13[02]) - HARNESS, ENGINE AND REAR CHASSIS (55) - ELECTRICAL SYSTEMS

1

47453961

WIRE HARNESS

Engine and Rear Chassis

1шт.

2

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

3

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

4

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

1шт.

5

8602418

ELEC CONNECTOR

Cap, 1 Cavity

1шт.

6

87632418

KIT

89 Pole Connector, Engine Controller

1шт.

7

245482C1

ELEC CONNECTOR,2 Pin

Air Conditioner High Pressure Switch

1шт.

8

182069A1

CONNECTOR, ELEC

2 Cavity, Water Separator Heater

1шт.

9

3227856R1

CONNECTION

2 Cavity, Grid Heater Relay

1шт.

10

87709793

WIRE CONNECTOR,Female, 2 Cavities

Doser Metering Valve

1шт.

11

84190317

WIRE CONNECTOR,Female, 5 Cavities

5 Cavity, NOx Sensor

1шт.

12

84192117

ELEC CONNECTOR

2 Cavity, Tank Heater Control Valve

1шт.

13

8602416

CONNECTOR,ELECTRIC

3 Cavity, Water In Fuel Sensor

1шт.

14

182068A1

CONNECTOR, ELEC

Cap, 2 Cavity

1шт.

15

1964703C1

TERMINAL CONNECTOR

Ring, 5mm, Fuel Sender

1шт.

16

8602417

TERMINAL CONNECTOR,Female

1 Cavity, Air Conditioner Compressor Clutch

1шт.

17

1964706C1

TERMINAL CONNECTOR

Ring, 10mm, Water In Fuel Ground

1шт.

18

225295C1

ELEC CONNECTOR,Female, 3 Pin

CAN, Bulkhead

1шт.

19

245483C1

ELEC CONNECTOR,Male, 2 Pin

Cap

1шт.

20

87713291

WIRE CONNECTOR

35 Cavity, NOx Controller

1шт.

21

84062580

CONNECTOR, ELEC

3 Cavity, DEF Level and Temp

1шт.

22

84126246

ELBOW

Junction, L - Piece

1шт.

23

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

24

84038366

ELEC CONNECTOR,Male

Cap, 2 Cavity

1шт.

25

87709793

WIRE CONNECTOR,Female, 2 Cavities

Downstream Exhaust Temp Sensor

1шт.

26

1964703C1

TERMINAL CONNECTOR

Ring, 5mm, Fuel Sender Ground

1шт.

27

182069A1

CONNECTOR, ELEC

2 Cavity, Water Seperator Heater

1шт.
