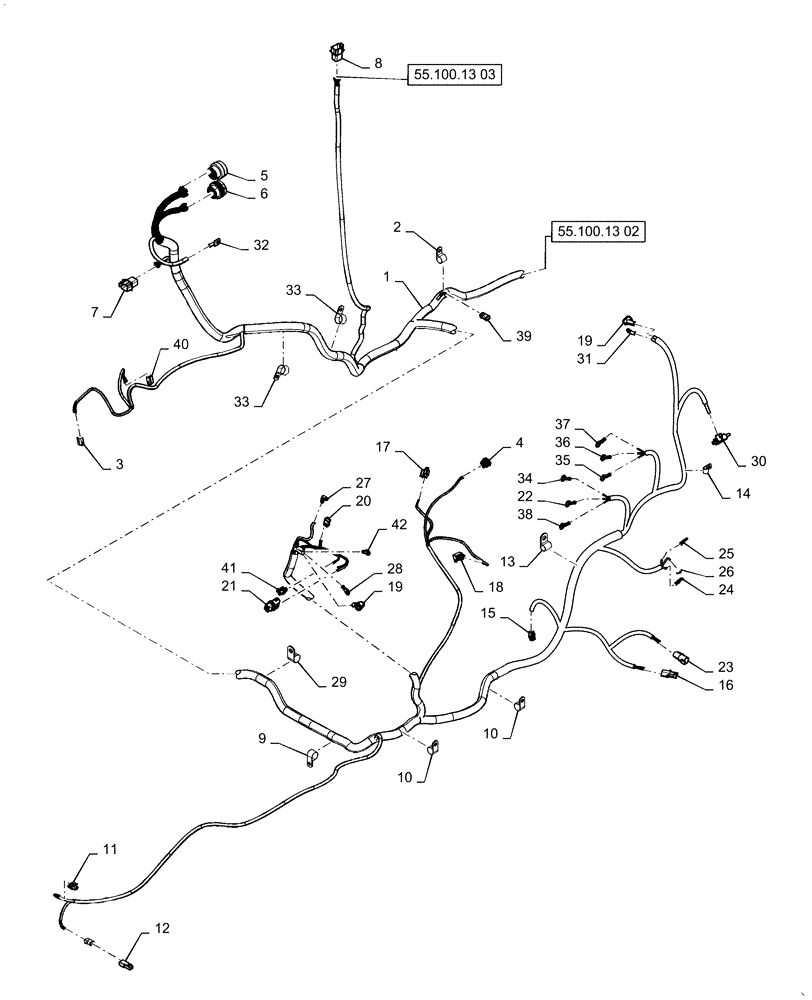

Запчасти Case 521F (55.100.13[01]) - HARNESS, ENGINE AND REAR CHASSIS (55) - ELECTRICAL SYSTEMS

1

84544853

WIRE HARNESS

Engine and Rear Chassis, Serial Range: -NEF222159

1шт.

1

84546011

WIRE HARNESS

Engine and Rear Chassis, T2, Serial Range: -NEF222183

1шт.

1

47455646

WIRE HARNESS

Engine and Rear Chassis, Start Serial: NEF222159

1шт.

1

47454042

Engine and Rear Chassis, T2, Start Serial: NEF222184

WIRE HARNESS

1шт.

2

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

3

3227856R1

CONNECTION

2 Cavity, Rear Washer Pump

2шт.

4

87709793

WIRE CONNECTOR,Female, 2 Cavities

Upstream Temp Sense

1шт.

5

374973A1

CONNECTOR,ELECTRIC

31 Cavity, Engine - Cab 1

1шт.

6

87703998

TERMINAL CONNECTOR

21 Cavity, Engine Bulkhead 2

1шт.

7

225411C1

CONNECTOR, ELEC

8 Pin, Cab Bottom

1шт.

8

225320C1

ELEC CONNECTOR

Engine To Hood

1шт.

9

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

10

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

11

256340A1

CONNECTOR, ELEC

2 Cavity, Fan PWM Solenoid

1шт.

12

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cap

1шт.

13

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

14

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

15

194788A1

CONNECTOR, 2-POLE

Engine Coolant Temp

1шт.

16

245483C1

ELEC CONNECTOR,Male, 2 Pin

Disconnect Harness

1шт.

17

87709809

ELEC CONNECTOR

4 Cavity, Humidity and Ambient Temperature

1шт.

18

291718A1

ELEC CONNECTOR,Female, 2 Pin

Air Filter Restriction Switch

1шт.

19

399470R1

BOOT

Alternator Positive

2шт.

20

225316C1

ELEC CONNECTOR,Female, 2 Pin

Starter Relay

1шт.

21

409084A1

ELEC CONNECTOR,Female, 2 Pin

PRM Output

1шт.

22

1964718C1

TERMINAL CONNECTOR

Ring, 10mm, Starter Relay Control, Fuel Filter Heater, Water Separator Ground

1шт.

23

87706435

TERMINAL CONNECTOR

1 Cavity, Cab Power

1шт.

24

1964720C1

TERMINAL CONNECTOR

Ring, 5mm, Starter Signal

1шт.

25

387078A1

TERMINAL CONNECTOR

Ring, 3/8in, Starter Power Stud

1шт.

26

382255A1

TERMINAL CONNECTOR

Ring, 10mm, Starter Power

1шт.

27

386010A1

Ring, 6mm, Starter Relay

1шт.

28

8602094

Ring, 5/16in, B+ From PRMD, PRMC

2шт.

29

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

1шт.

30

8602487

PLUG

5 cavity, Alternator D+

1шт.

31

225067C1

TERMINAL CONNECTOR

Ring, 5/16in, Alternator B+

1шт.

32

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Cab B+

1шт.

33

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

34

1964718C1

TERMINAL CONNECTOR

Ring, 10mm, Rear Lighting Ground

1шт.

35

1964718C1

TERMINAL CONNECTOR

Ring, 10mm, AIC / WIF Ground

1шт.

36

1964718C1

TERMINAL CONNECTOR

Ring, 10mm, EDC / WIF Ground

1шт.

37

1964718C1

TERMINAL CONNECTOR

Ring, 10mm, Fuel level, Telematics, EDC, NOx Ground

1шт.

38

1964718C1

TERMINAL CONNECTOR

Ring, 10mm, Engine Splice / Washer Motor Ground

1шт.

39

225316C1

ELEC CONNECTOR,Female, 2 Pin

Heat Load Valve Solenoid (Option)

1шт.

40

3227856R1

CONNECTION

2 Cavity, Front Washer Pump

1шт.

41

256340A1

CONNECTOR, ELEC

2 Cavity, PRM Signal

1шт.

42

8602094

Ring, 5/16in, B+ From PRMD, Cab

1шт.
