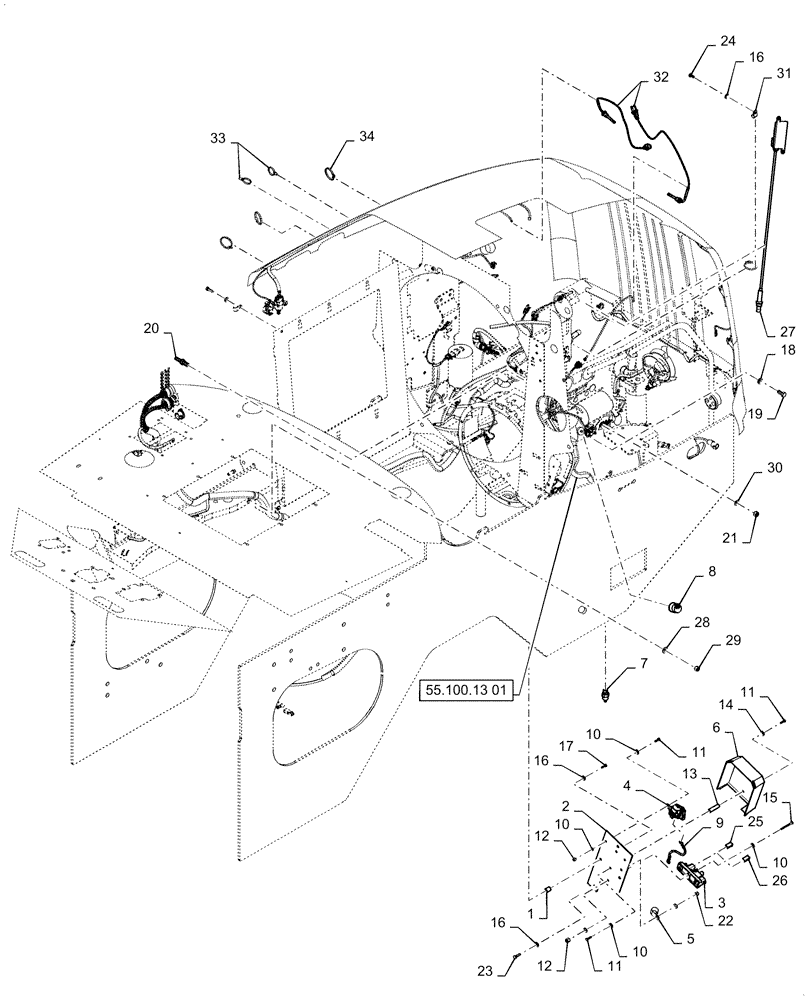

Запчасти Case 521F (55.100.12[02]) - HARNESS INSTALLATION, ENGINE AND REAR CHASSIS (55) - ELECTRICAL SYSTEMS

1

86516740

BUSHING,9.55mm ID x 15.93mm OD x 19.05mm L

3шт.

2

87724467

PLATE

Relay Mounting

1шт.

3

87318627

MODULE

Power Relay Module, Connector

1шт.

4

87351908

SOLENOID SWITCH

24 V

1шт.

5

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

6

87644183

COVER

Start Relay, With Circuit Breaker

1шт.

7

321446A1

SENSOR

Engine Coolant

1шт.

8

279492A1

RESTRICTION SWITCH

Engine Air Filter

1шт.

9

87629634

ELECTRIC CABLE

Starter Relay

1шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

7шт.

11

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

12

832-10406

NUT,M6 x 1, Cl 8

3шт.

13

253065A1

SPACER

Relay Cover

1шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

15

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

17

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

3шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

19

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

20

L127553

STUD

Brass

2шт.

21

L127555

NUT,Hex, 3/8" - 16

Brass

2шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

23

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

24

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

25

87327342

FUSE,30 Amp

32 V

1шт.

26

87327346

FUSE,40A, Green

32 V

1шт.

27

84422745

SENSOR

NOx, 24 V

1шт.

28

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

30

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

3шт.

31

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

32

47478880

TEMPERATURE SENDER,50mm, Closed

Exhaust Gas Tempertaure

1шт.

33

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assembly

5шт.

34

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
