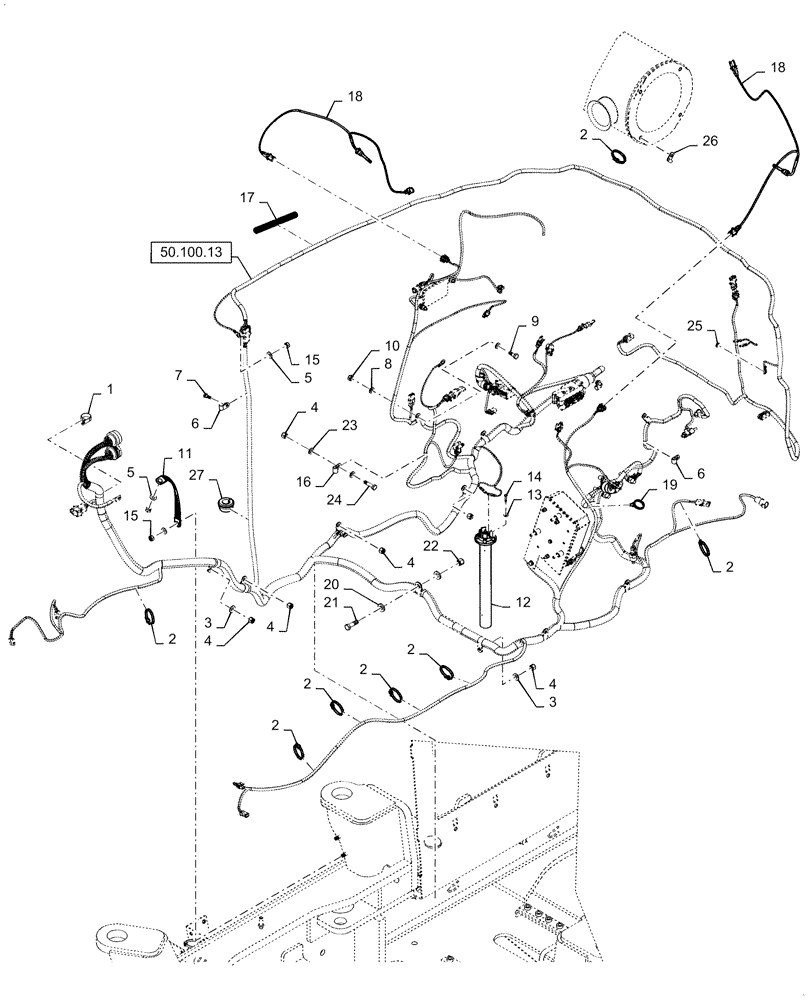

Запчасти Case 521F (55.100.12[01]) - HARNESS INSTALLATION, ENGINE AND REAR CHASSIS (55) - ELECTRICAL SYSTEMS

1

515-21302

CLAMP,1 3/16", Insul, 1/4" Bolt

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

30шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

5шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

5

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

6

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

11

L126051

GROUND STRAP

230mm

1шт.

12

87542710

SENDER UNIT

Fuel Level

1шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

14

463-11016

SCREW,Hex Hd, #10-24 x 1"

5шт.

15

253347A1

NUT,Hex, M10 x 1.5

Brass

3шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

17

47540585

CONDUIT

Conduit, Stop and Tail Light

1шт.

18

47478880

TEMPERATURE SENDER,50mm, Closed

Exhaust Gas Temperature

1шт.

19

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree

1шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

21

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

23

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

24

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

25

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

26

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

1шт.

27

435214A1

GROMMET

1 In ID x 1.75 In OD

1шт.
