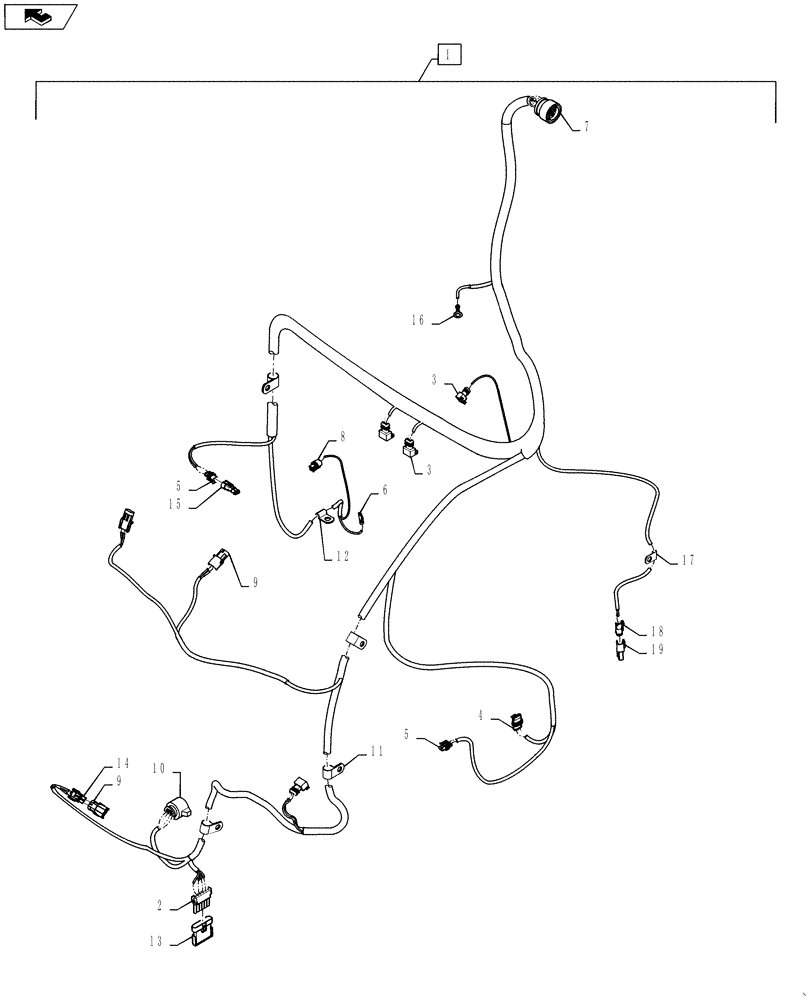

Запчасти Case 521F (55.100.01) - TRANSMISSION WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

84544854

WIRE HARNESS

Incl. 2-19

1шт.

2

245488C1

ELEC CONNECTOR,6 Pin

1шт.

3

291718A1

ELEC CONNECTOR,Female, 2 Pin

4шт.

4

291719A1

CONNECTOR, ELEC

CONNECTOR 3-Cavity Plug

1шт.

5

371614A1

ELEC CONNECTOR,Female, 2 Pin

2шт.

6

1964703C1

TERMINAL CONNECTOR

Ring

1шт.

7

380838A1

ELEC CONNECTOR,Male, 31 Pin

1шт.

8

194788A1

CONNECTOR, 2-POLE

1шт.

9

245483C1

ELEC CONNECTOR,Male, 2 Pin

3шт.

10

371566A1

CONNECTOR,ELECTRIC

1шт.

11

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

5шт.

12

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

13

245489C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

14

245482C1

ELEC CONNECTOR,2 Pin

1шт.

15

371615A1

CONNECTION,ELECTRIC

2-Cavity Receptacle

1шт.

16

1964718C1

TERMINAL CONNECTOR

1шт.

17

84370849

CLAMP

1шт.

18

225316C1

ELEC CONNECTOR,Female, 2 Pin

1шт.

19

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.
