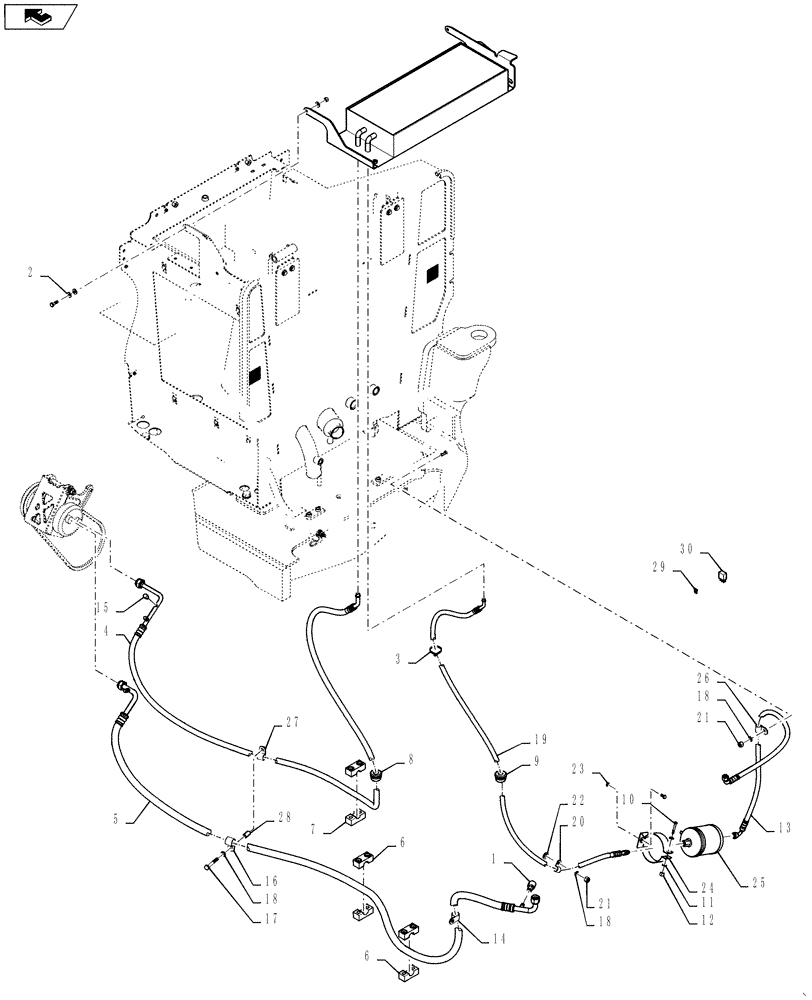

Запчасти Case 521F (50.200.06) - AIR CONDITIONING, HOSE INSTALLATION (50) - CAB CLIMATE CONTROL

1

122579A1

SWITCH, A/C LOW PRES

A/C Low Pressure

1шт.

2

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

4

87669780

HOSE ASSY.

, Serial Range: Compressor-Condensor

1шт.

5

84191327

A/C HOSE

, Serial Range: Cab-Compressor

1шт.

6

367489A1

BLOCK

Tube Mounting

2шт.

7

379374A1

BLOCK

Tube Mounting

1шт.

8

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

9

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

10

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

12

832-10406

NUT,M6 x 1, Cl 8

2шт.

13

84191326

A/C HOSE

, Serial Range: Dryer-Cab

1шт.

14

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

15

232948A1

SWITCH, A/C HIGH PRE

1шт.

16

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

17

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

18

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

19

84191325

A/C HOSE

, Serial Range: Condensor-Dryer

1шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

22

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

24

433723A1

CLAMP

2шт.

25

295006A1

RECEIVER-DRYER

1шт.

26

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

27

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

28

L126936

SPACER

1шт.

29

121411A1

FUSE,7.5A, Mini, Brown

1шт.

30

87312626

RELAY,24V

5-Pin

1шт.
