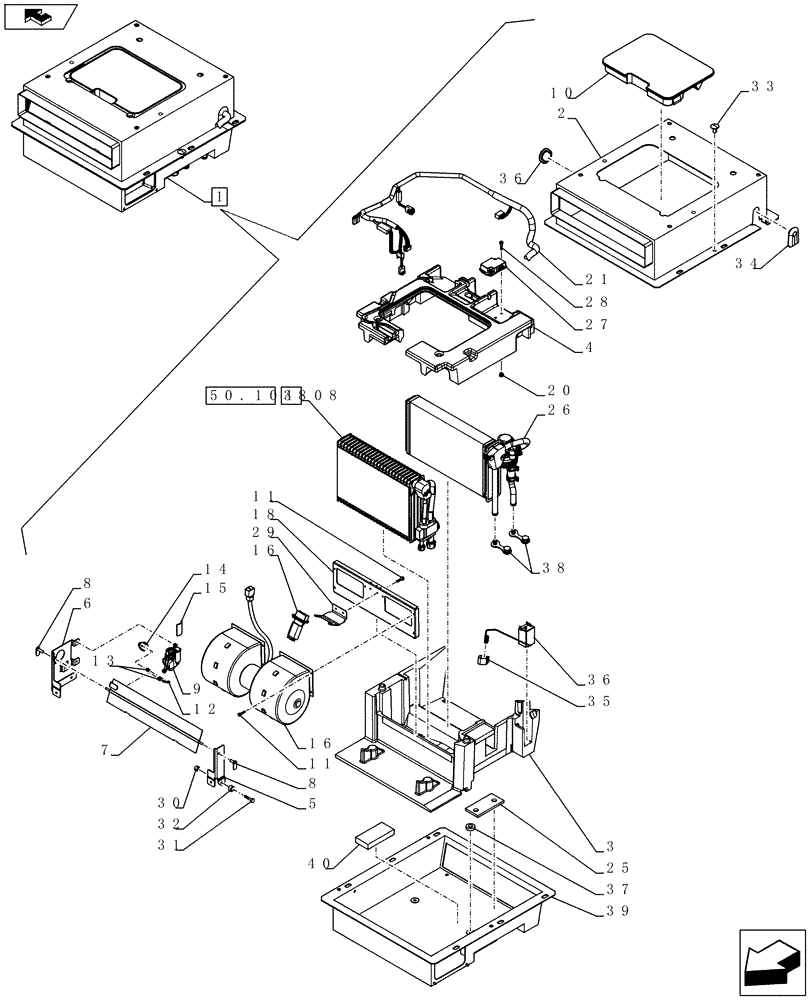

Запчасти Case 521F (50.200.01) - AIR CONDITIONING WITH HEATER ASSEMBLY (50) - CAB CLIMATE CONTROL

1

84192329

AIR CONDITIONER

Manual Incl 2 - 38

1шт.

2

87472438

BOX

Upper

1шт.

3

87474170

SHIELD

Lower

1шт.

4

87472439

BOX

Upper

1шт.

5

NSS

NOT SOLD SEPARAT

Right Fastening Bracket, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Left Fastening Bracket, Incl in 1

1шт.

7

87643958

FLAP

Recirculation

1шт.

8

87643957

BUSHING

For Recirculation Flap

2шт.

9

87528689

ACTUATOR

1шт.

10

87529462

COVER

Inspection Trapdoor

1шт.

11

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

13шт.

12

87472436

TIE-ROD

1шт.

13

87643955

BUSHING

2шт.

14

87472437

LEVER

1шт.

15

NSS

NOT SOLD SEPARAT

Seal Actuator, Incl in 1

1шт.

16

84192331

BLOWER ASSY.

Electric Fan

1шт.

17

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Pipe Fastener, Incl in 1

1шт.

19

87528688

RESISTOR

1шт.

20

84192332

WIRE HARNESS

Assembled Cable

1шт.

21

87529453

BOX

1шт.

22

87728778

SEAL

Seal

1шт.

23

87529487

SOLENOID

1шт.

24

87529487

SOLENOID

Driver Solenoid

1шт.

25

NSS

NOT SOLD SEPARAT

Plastic Nut, Incl in 1

2шт.

26

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

27

87728776

SEAL

1шт.

28

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

4шт.

29

NSS

NOT SOLD SEPARAT

Incl in 1

5шт.

30

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

5шт.

31

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

3шт.

32

87476710

GROMMET

1шт.

33

87472441

PLUG

Cap

1шт.

34

NSS

NOT SOLD SEPARAT

Protective Cap, Incl in 1

2шт.

35

87577360

SPRING CLIP

1шт.

36

87529621

THERMOSTATIC SWITCH,Air Conditioning

1шт.

37

87728777

SEAL

1шт.

38

87529493

EVAPORATOR

See Fig 50.200.02

1шт.
