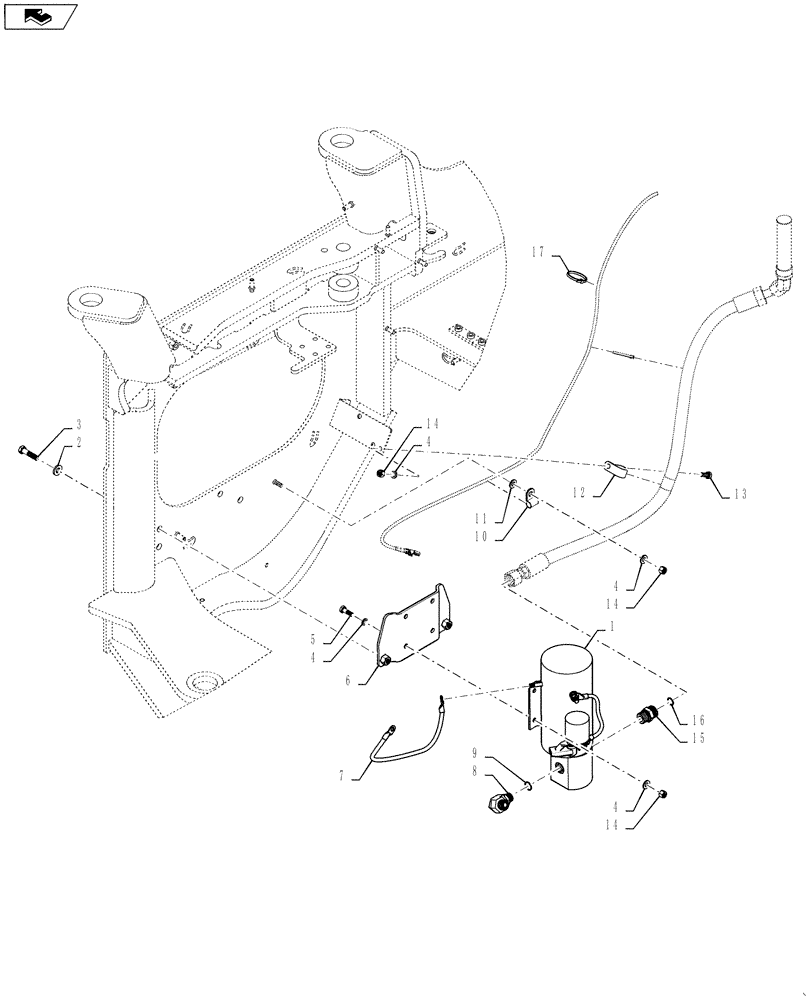

Запчасти Case 521F (41.910.03) - SECONDARY STEERING, AUXILIARY STEERING PUMP (41) - STEERING

1

87581480

ELECTRIC PUMP

Motor Auxiliary Steering

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

3

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

5шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

6

87367580

BRACKET

Pump Mounting

1шт.

7

L129707

NEG BATTERY CABLE

1шт.

8

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 9

2шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

10

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

12

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

15

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 16

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

9шт.
