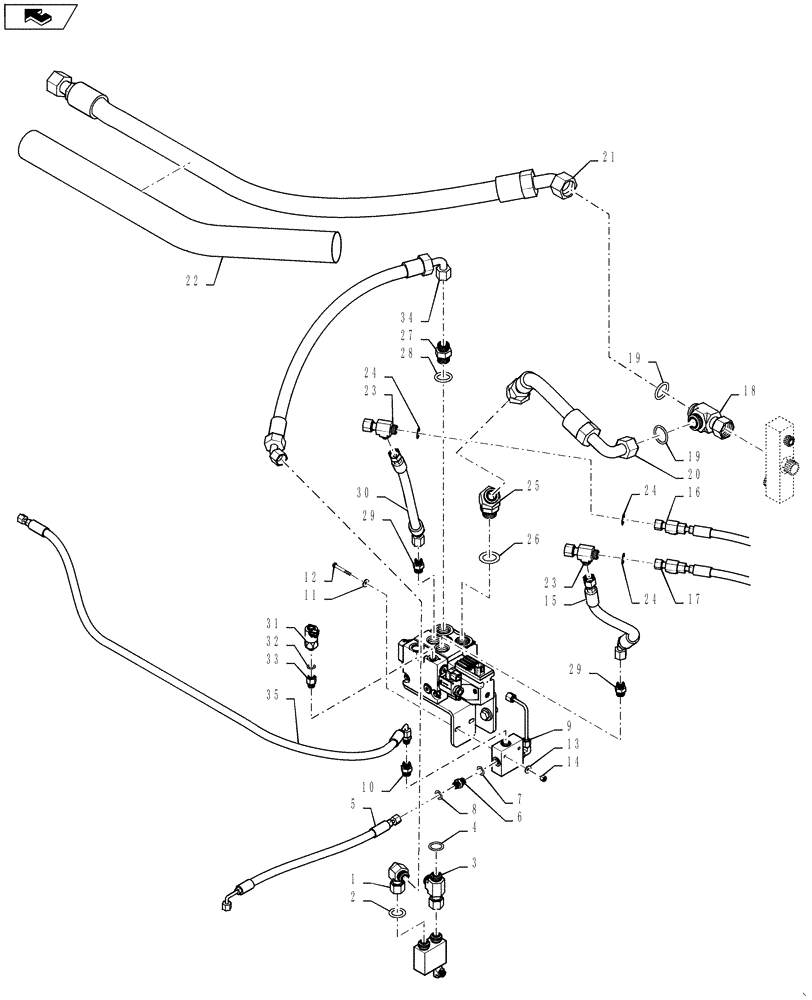

Запчасти Case 521F (41.910.01) - JOYSTICK STEERING WITH AUXILIARY STEERING (41) - STEERING

1

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 2

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 4

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

84215661

HOSE

Suction Valve

1шт.

6

87661868

HYD CONNECTOR

Incl 7 - 8

1шт.

7

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

87719987

VALVE

1шт.

10

84172268

HYD CONNECTOR

1шт.

11

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

12

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

13

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

14

832-10406

NUT,M6 x 1, Cl 8

2шт.

15

84143163

HOSE

To Tank

1шт.

16

84164220

HOSE ASSY.

Steering Right Base

1шт.

17

84164219

HOSE ASSY.

Right Rod

1шт.

18

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl 19

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

20

84143163

HOSE

To Tank

1шт.

21

84145206

HOSE ASSY.

Valve Return

1шт.

22

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

23

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 24

2шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

25

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 26

1шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

1шт.

28

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

29

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

30

84143165

HOSE

To Cylinder

1шт.

31

84175670

PRESSURE SWITCH

1шт.

32

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

1шт.

33

87487329

FITTING,M14 x 1.5 ORB x M12 x 1.5 ORB

1шт.

34

84161731

HOSE ASSY.

Suction Valve

1шт.

35

437596A1

HOSE ASSY.

Steering Load Sense

1шт.
