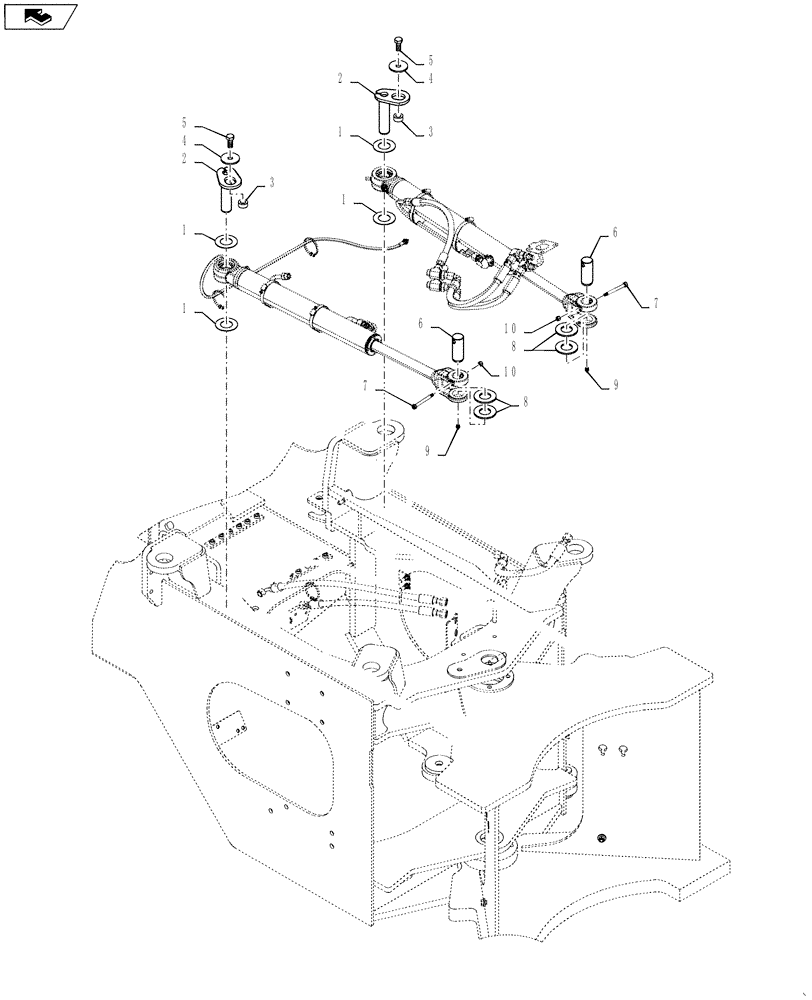

Запчасти Case 521F (41.216.02) - STEERING CYLINDER INSTALLATION (41) - STEERING

1

8501088

WASHER,41mm ID x 76mm OD x 1.59mm Thk

4шт.

2

87749494

PIVOT PIN

Steering Pivot

2шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

2шт.

4

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

5

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

6

380583A2

PIN

Steering

2шт.

7

87308853

HEX SOC SCREW,M8 x 96.4mm, Cl 12.9

2шт.

8

419819A1

WASHER

4шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
