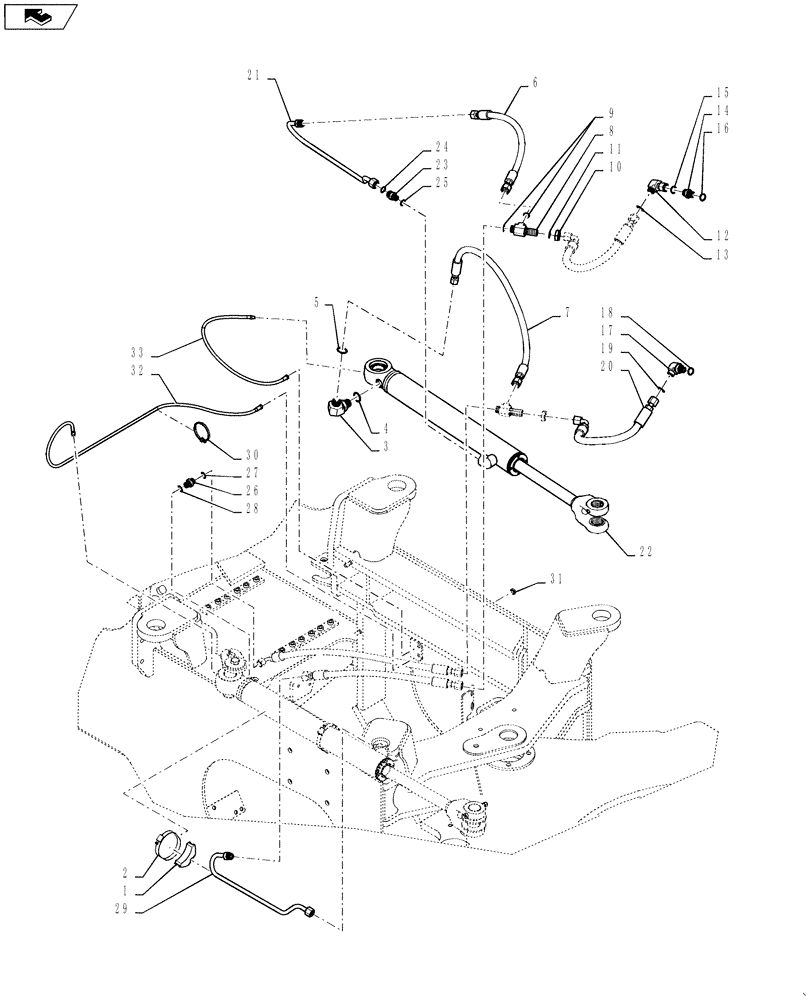

Запчасти Case 521F (41.216.01) - STEERING CYLINDER INSTALLATION (41) - STEERING

1

8500483

BLOCK

Clamp

4шт.

2

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

4шт.

3

700-368

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 4 - 5

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

6

87668580

HOSE ASSY.

Steering Left Rod

1шт.

7

84407487

FLEXIBLE HOSE

Steering Left Base

1шт.

8

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 9

2шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

10

701-903

NUT,13/16" - 16

Incl 11

2шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 13

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 15 - 16

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

17

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 18 - 19

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

20

87385246

HOSE ASSY.

Steering Cylinder

2шт.

21

84407469

RIGID TUBE

Steering Cylinder

1шт.

22

84403509

CYLINDER,Double Acting, 34.9mm Rod, 462.5mm Stroke

For Seal Kits See 41.216.01 (01)

2шт.

22

84403509R

REMAN-HYD CYLINDER

521F TIER 2 (INT), 521F TIER 4 (NA), Both WHEEL LOADER (1/12-)

2шт.

22

84403509C

CORE-HYD CYLINDER

Return Number

2шт.

23

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 24 - 25

2шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

25

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

26

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 27 - 28

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

29

84407465

RIGID TUBE

Steering Cylinder

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

31

F53473

LOCK NUT,1/8-27 NPSM

2шт.

32

313682A1

FLEXIBLE HOSE

Steering Grease

1шт.

33

L54693

HOSE

Grease

1шт.
