Запчасти Case 521F (41.216.01[01]) - STEERING CYLINDER (41) - STEERING

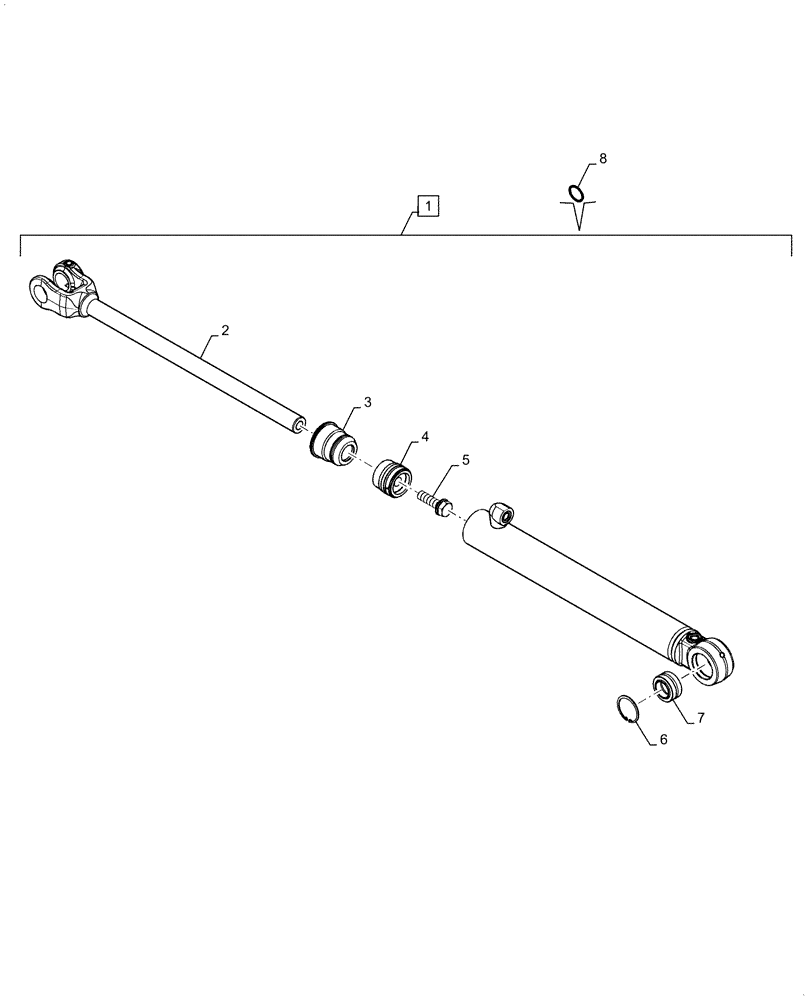

Схема запчастей Case 521F - (41.216.01[01]) - STEERING CYLINDER (41) - STEERING
8
6
1
2
7
5
3
4

Артикул

Название

Примечание

Количество

1

84403509

CYLINDER,Double Acting, 34.9mm Rod, 462.5mm Stroke

Complete Assembly, Steering, Incl 2 - 7

1шт.

2

87722354

PISTON ROD,34.9mm OD x 687mm L

1шт.

3

348177A1

GLAND

63.5mm Cylinder, 34.9mm Rod

1шт.

4

348175A1

PISTON ASSY.

63.5mm Cylinder, 34.9mm Rod

1шт.

5

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

Bolt and Washer Assembly

1шт.

6

100-21218

SNAP RING,2.165", Int, #216

Bushing Retainer

1шт.

7

G109152

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 30.15mm W

Steering Pin Bushing

2шт.

8

8604864

SEAL KIT

Services Piston and Gland

1шт.

Выбрано товаров: 8
