Запчасти Case 521F (41.200.10) - SECONDARY STEERING LOADER VALVE (41) - STEERING

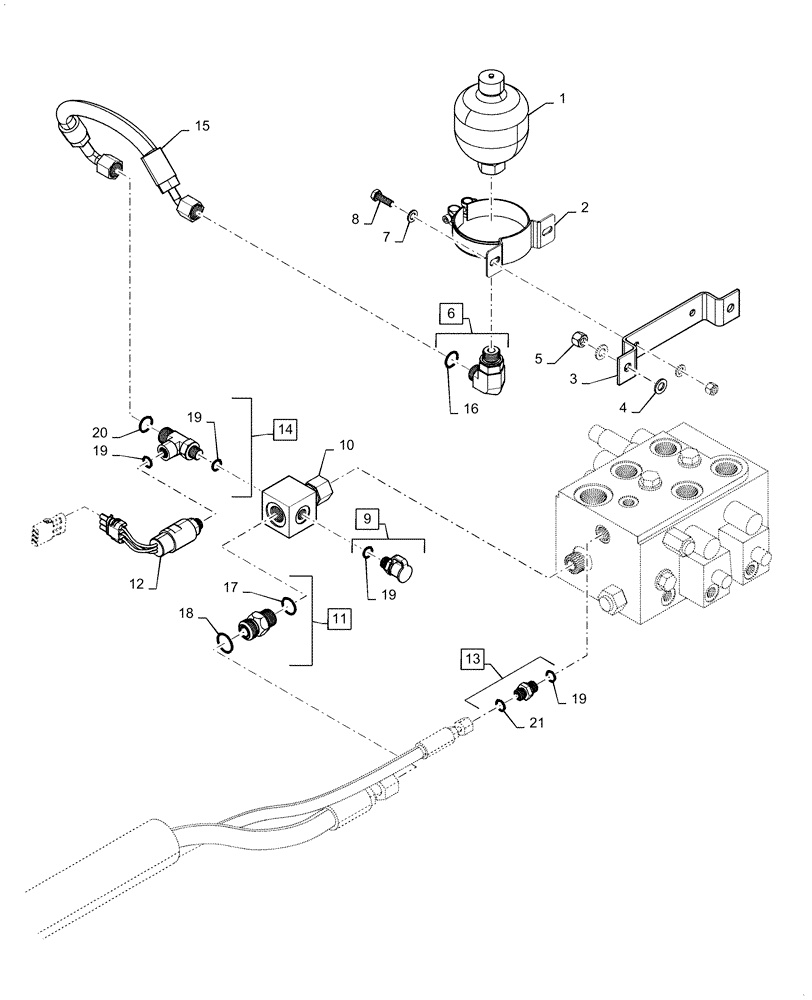

Схема запчастей Case 521F - (41.200.10) - SECONDARY STEERING LOADER VALVE (41) - STEERING
14
19
16
4
11
18
1
19
17
7
19
10
19
9
21
8
6
5
3
2
13
12
15
20

Артикул

Название

Примечание

Количество

1

87746283

ACCUMULATOR

1шт.

2

87750434

CLAMP

1шт.

3

87735674

CLAMP

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

6

87725875

FITTING

Incl 16

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

8

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

9

178889A1

DIAGNOSTIC COUPLER

Incl 19

1шт.

10

400242A1

FITTING

Auxiliary Steering Switch

1шт.

11

376970A1

VALVE, CHECK

Incl 17, 18

1шт.

12

398888A1

PRESSURE SWITCH

1шт.

13

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 19, 21

1шт.

14

87725860

FITTING

Incl 19, 20

1шт.

15

87727072

HOSE ASSY.

Accumulator

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

19

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
