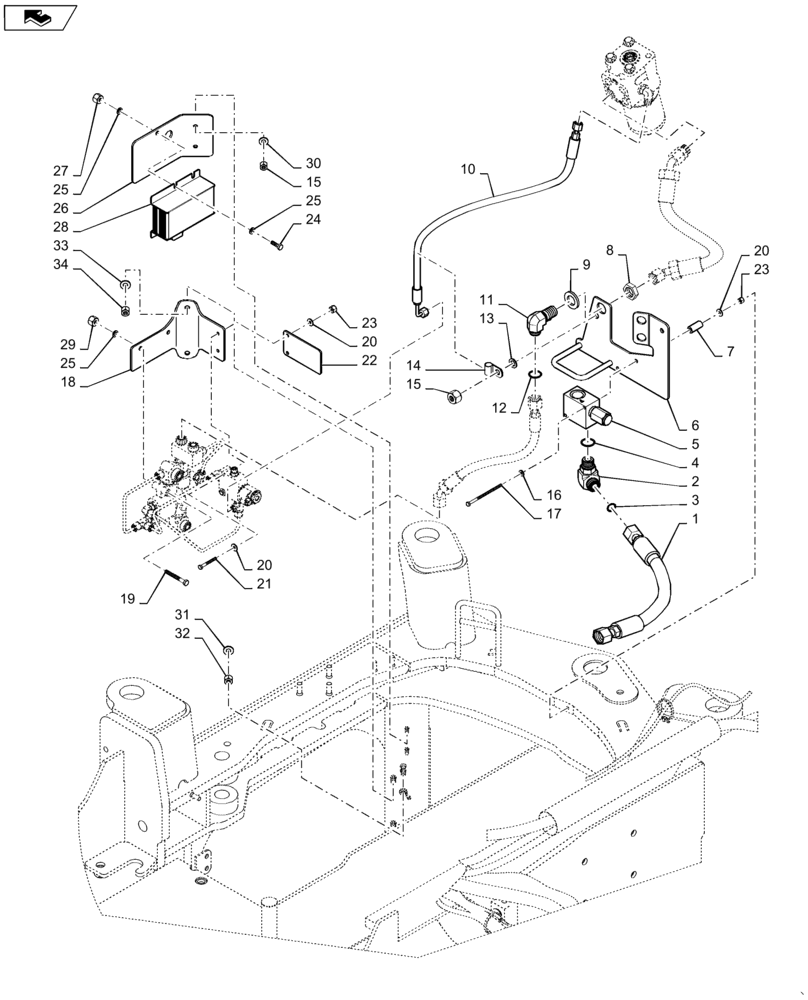

Запчасти Case 521F (41.200.08) - SECONDARY STEERING PRIORITY VALVE MOUNTING (41) - STEERING

1

87476356

HOSE ASSY.

Return Relief to Filter

1шт.

2

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 3 - 4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

5

87427823

VALVE PRESSURE RELIE

1шт.

6

84551691

BRACKET

Bracket Steering Return

1шт.

7

87563044

SPACER,8mm ID x 16mm OD x 35mm L

2шт.

8

701-919

BHD LOCK NUT,1" - 14

1шт.

9

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

1шт.

10

87724965

HOSE ASSY.,6.35mm ID x 1350mm L, SAE 100R2

Auxiliary Load Sense

1шт.

11

701-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl 12

1шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

14

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

16

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

17

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

2шт.

18

87367465

BRACKET

Auxiliary Steering

1шт.

19

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

20

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

21

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

22

87403158

SHIELD

Solenoid Valve

1шт.

23

832-10406

NUT,M6 x 1, Cl 8

4шт.

24

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

26

87369996

BRACKET

Upper Secondary Steering

1шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

28

8603171

MODULE

Secondary Steering

1шт.

29

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

31

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

32

253347A1

NUT,Hex, M10 x 1.5

1шт.

33

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

34

832-10412

NUT,M12 x 1.75, Cl 8

1шт.
