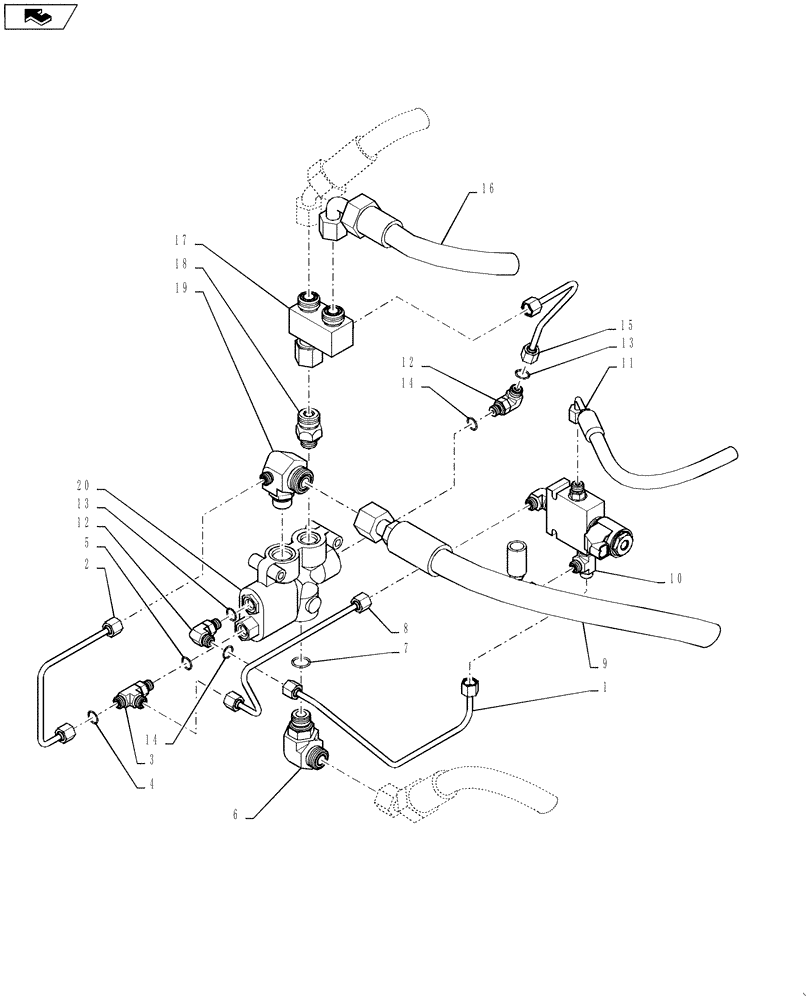

Запчасти Case 521F (41.200.07) - SECONDARY STEERING HYDRAULIC VALVE CONNECTIONS (41) - STEERING

1

87451269

TUBE,6.35 mm OD

Load Sense

1шт.

2

87374103

HYD TUBE,4.57 mm ID x 6.35 mm OD x 112.4, 78.3 mm L

Auxiliary Tank

1шт.

3

700-435

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 4 - 5

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

6

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 7

1шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

8

87374100

HYD TUBE,4.57 mm ID x 6.35 mm OD x 200, 15.1 mm L

Auxiliary Steering Tank

1шт.

9

87436049

HOSE ASSY.

Excess Flow

1шт.

10

445471A1

VALVE

Solenoid

1шт.

11

437596A1

HOSE ASSY.

Steering Load Sense

1шт.

12

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 13 - 14

2шт.

13

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

14

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

15

87706314

TUBE,.25" OD

Load Sense Steering

1шт.

16

87706316

HOSE ASSY.

Auxiliary Steering Pressure

1шт.

17

376636A1

FITTING

Auxiliary Pressure

1шт.

18

392354A1

VALVE, CHECK

1шт.

19

376794A1

FITTING

Includes O-Rings

1шт.

20

87371432

HYDRAULIC VALVE

Priority

1шт.
