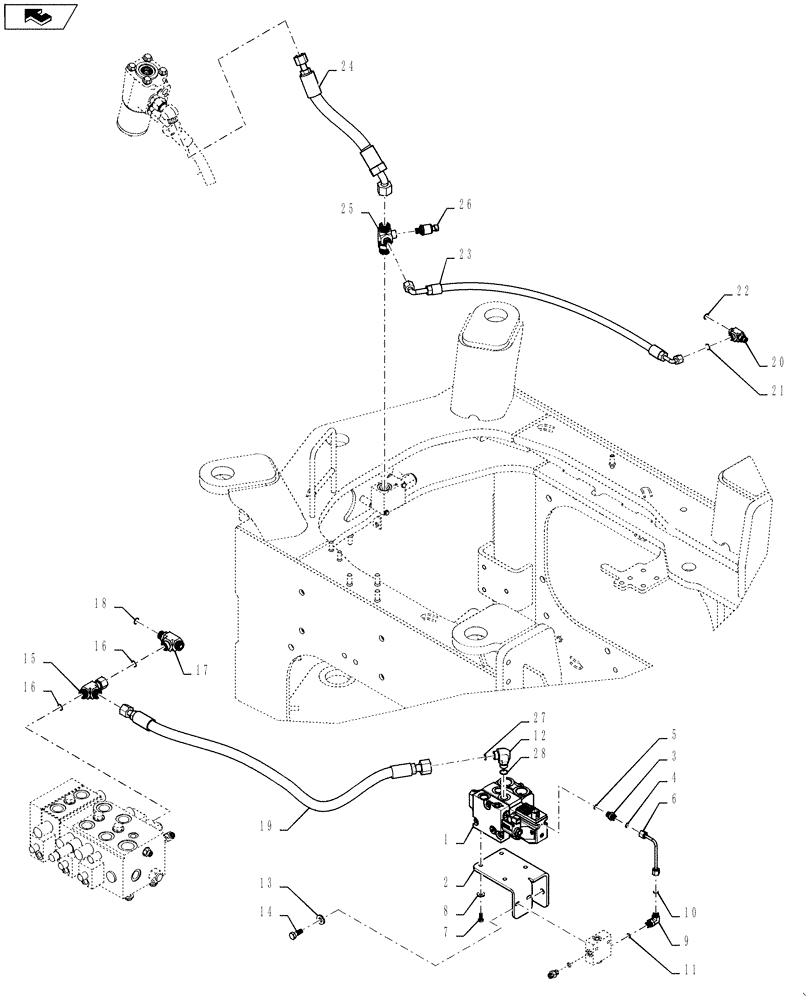

Запчасти Case 521F (41.200.05) - STANDARD STEERING WITH JOYSTICK (41) - STEERING

1

84242781

STEERING VALVE

Proportional

1шт.

2

84143169

BRACKET

Valve Steering

1шт.

3

87661868

HYD CONNECTOR

Incl 4 - 5

1шт.

4

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

6

84143171

HYD TUBE,5.1mm ID x 6.35mm OD x 101mm L

Steering

1шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

8

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

9

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 10 - 11

1шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 27 - 28

1шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

14

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

15

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 16

1шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

17

700-420

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 18

1шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

84162471

HOSE ASSY.

Loader Valve

1шт.

20

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 21 - 22

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

23

84216353

HOSE

Bleeding To Tank

1шт.

24

84418113

FLEXIBLE HOSE

Steering Return

1шт.

25

84215653

TEE

1шт.

26

87363483

SENDER UNIT

1шт.

27

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Used With Item # 12

1шт.

28

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Used With Item # 12

1шт.
