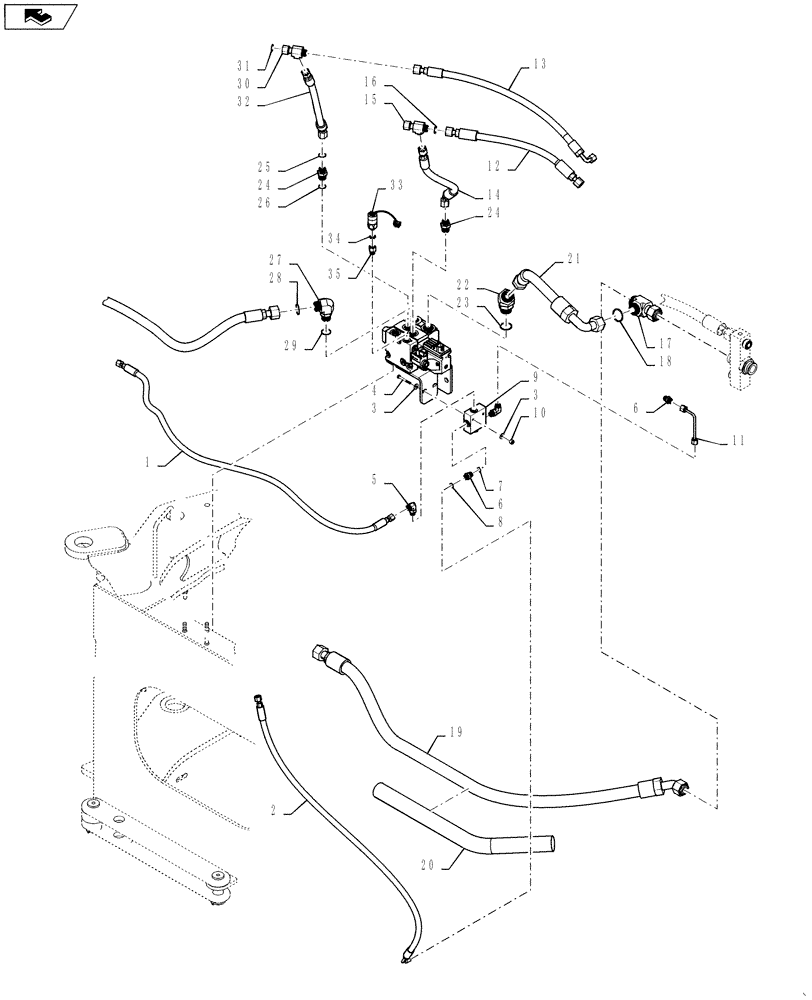

Запчасти Case 521F (41.200.04) - STANDARD STEERING WITH JOYSTICK (41) - STEERING

1

84144047

HOSE

Steering To Loader Valve

1шт.

2

87724965

HOSE ASSY.,6.35mm ID x 1350mm L, SAE 100R2

Steering To Pressure And Return Valve

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

4

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

5

84176570

FITTING

1шт.

6

87661868

HYD CONNECTOR

Incl 7 - 8

2шт.

7

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

9

87719987

VALVE

I

1шт.

10

832-10406

NUT,M6 x 1, Cl 8

2шт.

11

84143171

HYD TUBE,5.1mm ID x 6.35mm OD x 101mm L

Steering

1шт.

12

84164219

HOSE ASSY.

Steering Right Rod

1шт.

13

84164220

HOSE ASSY.

Steering Right Base

1шт.

14

84143165

HOSE

To Cylinder

2шт.

15

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 16

2шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl 18

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

19

84145206

HOSE ASSY.

Valve Return

1шт.

20

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

21

84143163

HOSE

To Tank

1шт.

22

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 23

1шт.

23

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

24

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 25 - 26

2шт.

25

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

27

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 28 - 29

1шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

29

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

30

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 31

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

32

84143165

HOSE

To Cylinder

2шт.

33

84175670

PRESSURE SWITCH

1шт.

34

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

1шт.

35

87487329

FITTING,M14 x 1.5 ORB x M12 x 1.5 ORB

Reduction

1шт.
