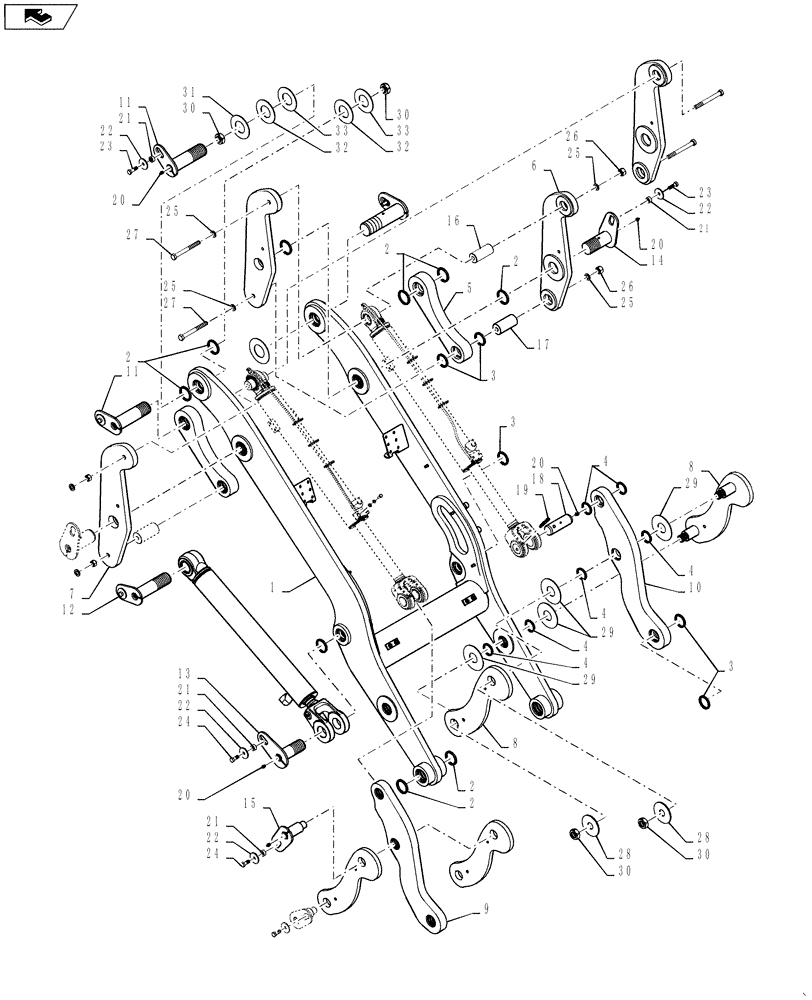

Запчасти Case 521F (39.105.03) - LIFT ARM X/T (39) - FRAMES AND BALLASTING

1

87343694

LIFT ARM

X/T CNH CE Gray

1шт.

2

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

69.8

16шт.

3

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

63.5

12шт.

4

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

Wiper 57.125

12шт.

5

87447627

LINKAGE

Anchor X/T CNH CE Gray

2шт.

6

87343715

BELLCRANK

X/T Left Hand CNH CE Gray

2шт.

7

87343720

BELLCRANK

X/T Right Hand CNH CE Gray

2шт.

8

87447635

LINKAGE

Guide X/T CNH CE Gray

4шт.

9

87452240

LINKAGE

Dump X/T CNH CE Gray

1шт.

10

87310634

LINKAGE

Dump X/T CNH CE Gray

1шт.

11

87446997

HEADED PIN

Lift Arm CNH CE Gray ( N/A INT Only)

4шт.

11

87446996

HEADED PIN

Lift Arm Power Tan (EU Only)

4шт.

12

84315936

PIN

Lift Arm Pivot CNH CE Gray (N/A INT Only)

2шт.

12

84315933

PIN

Lift Arm Pivot Power Tan (EU Only)

2шт.

13

87397333

PIN,63.5mm OD x 177.5mm L

Lift Arm Pivot Rod CNH CE Gray (N/A INT Only )

2шт.

13

361133A2

PIN ASSY.

Lift Arm Pivot Rod Power Tan (EU Only)

2шт.

14

368744A2

PIN ASSY.

Bell Crank Pivot X/T CNH CE Gray

2шт.

15

369238A2

PIN ASSY.

Guide Link X/T CNH CE Gray

4шт.

16

368775A1

PIN

Pin Bell Crank X/T Cylinder Side

2шт.

17

368776A1

PIN,63.5mm OD x 130.65mm L

Bell Crank X/T Anchor Side

2шт.

18

368836A2

PIN,57.15mm OD x 165mm L

Tilt Cylinder X/T

2шт.

19

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

18шт.

21

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

14шт.

22

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

23

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

24

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

25

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

26

829-1420

NUT,M20, Cl 10

4шт.

27

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

28

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

4шт.

29

369712A1

WASHER

8шт.

30

131-53

NUT,1 1/2"-12

4шт.

31

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

3.5 Thk

1шт.

32

375516A1

WASHER,71.3mm ID x 142mm OD x 1.6mm Thk

1.6 Thk

1шт.

33

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

2.5 Thk

1шт.
