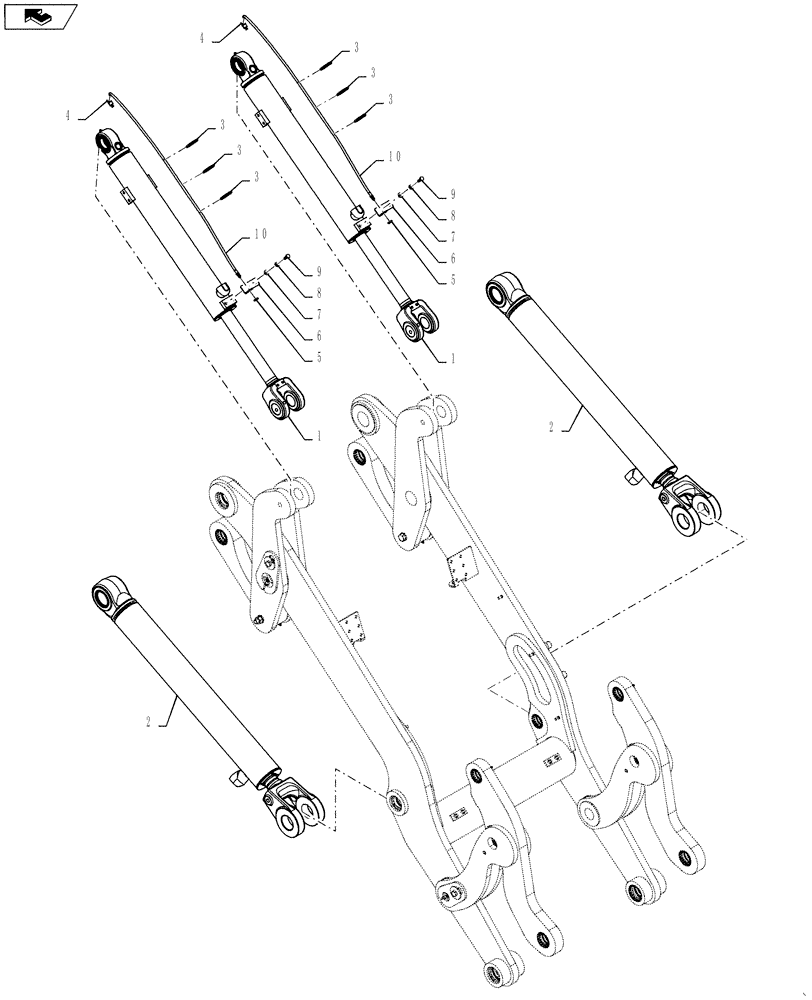

Запчасти Case 521F (39.105.03[01]) - LIFT ARM X/T (39) - FRAMES AND BALLASTING

1

87446958

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 758.3mm Stroke

Tilt CNH CE Gray

2шт.

87446958R

REMAN-HYD CYLINDER

521F WHEEL LOADER - TIER 2 (INT), 521F WHEEL LOADER - TIER 4 (NA) BOTH (1/12-)

2шт.

87446958C

CORE-HYD CYLINDER

Return Number

1шт.

2

87366685

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 783mm Stroke

Lift CNH CE Gray

2шт.

87366685R

REMAN-HYD CYLINDER

521F WHEEL LOADER - TIER 2 (INT), 521F WHEEL LOADER - TIER 4 (NA) all (1/12-)

2шт.

87366685C

CORE-HYD CYLINDER

Return Number

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

4

328082A1

ELBOW

90 Deg

2шт.

5

F53473

LOCK NUT,1/8-27 NPSM

2шт.

6

87448980

BRACKET

Grease Hose Mount

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

8

892-11010

LOCK WASHER,M10

2шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

10

87444057

FLEXIBLE HOSE

Grease

2шт.
