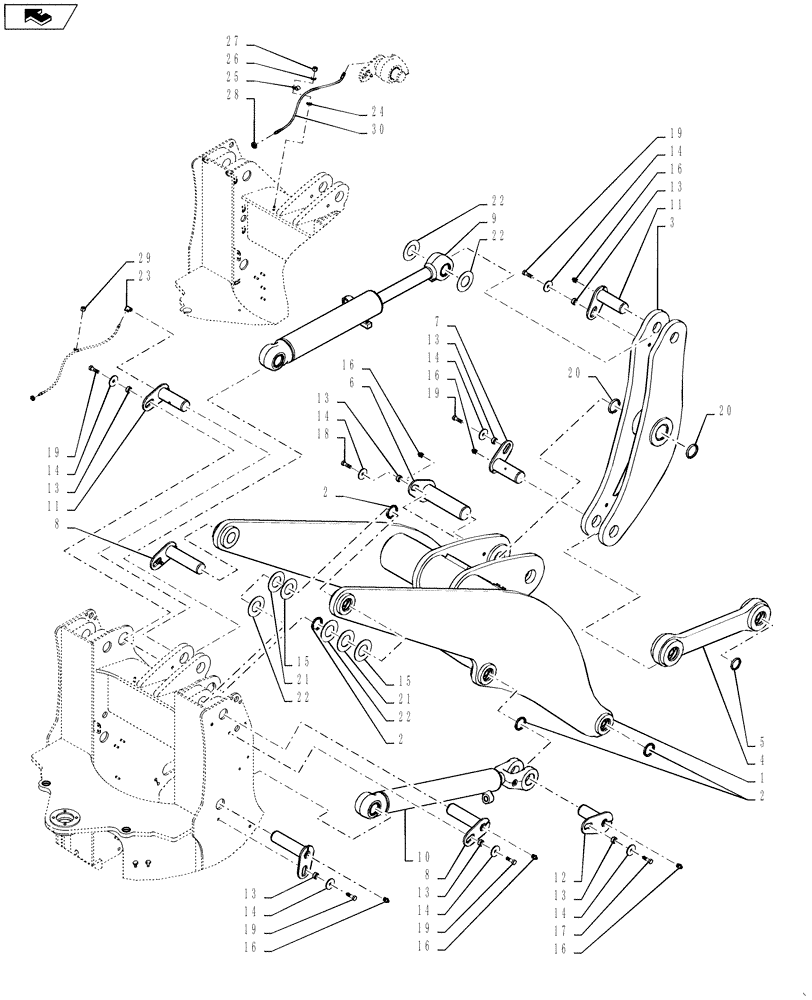

Запчасти Case 521F (39.105.02) - LIFT ARM INSTALLATION, XR/LR (39) - FRAMES AND BALLASTING

1

84136676

LIFT ARM

1шт.

2

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

63.5 mm

12шт.

3

87330116

BELLCRANK

1шт.

4

87395744

LINK,863.8mm L

Dump, For Bushing Order 87395744

1шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

69.8 mm

4шт.

6

87397320

PIN,82.55mm OD x 316.5mm L

Bellcrank

1шт.

7

87397326

PIN

Dump Link

1шт.

8

84315936

PIN

Lift Arm

4шт.

9

87695546

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 529.2mm Stroke

Tilt

1шт.

87695546R

REMAN-HYD CYLINDER

521F, TIER 2/ TIER 4, BOTH (1/12-)

1шт.

87695546C

CORE-HYD CYLINDER

Return Number

1шт.

10

87366685

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 783mm Stroke

Lift

2шт.

87366685R

REMAN-HYD CYLINDER

521F WHEEL LOADER - TIER 2 (INT), 521F WHEEL LOADER - TIER 4 (NA) all (1/12-)

2шт.

87366685C

CORE-HYD CYLINDER

Return Number

1шт.

11

87305261

PIVOT PIN,63.5mm OD x 191.5mm L

2шт.

12

87397333

PIN,63.5mm OD x 177.5mm L

Lift Arm

2шт.

13

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

10шт.

14

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

15

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

3.5 Thick

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

9шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

18

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

19

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

7шт.

20

365523A1

WIPER SEAL

82.5 mm

2шт.

21

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

1.6 Thick

1шт.

22

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

2.5 Thick

1шт.

23

328082A1

ELBOW

1шт.

24

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

25

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

28

F53473

LOCK NUT,1/8-27 NPSM

1шт.

29

832-10416

NUT,M16 x 2, Cl 8

1шт.

30

L54694

HOSE,4.8mm ID x 1041mm L

Grease Line

1шт.
