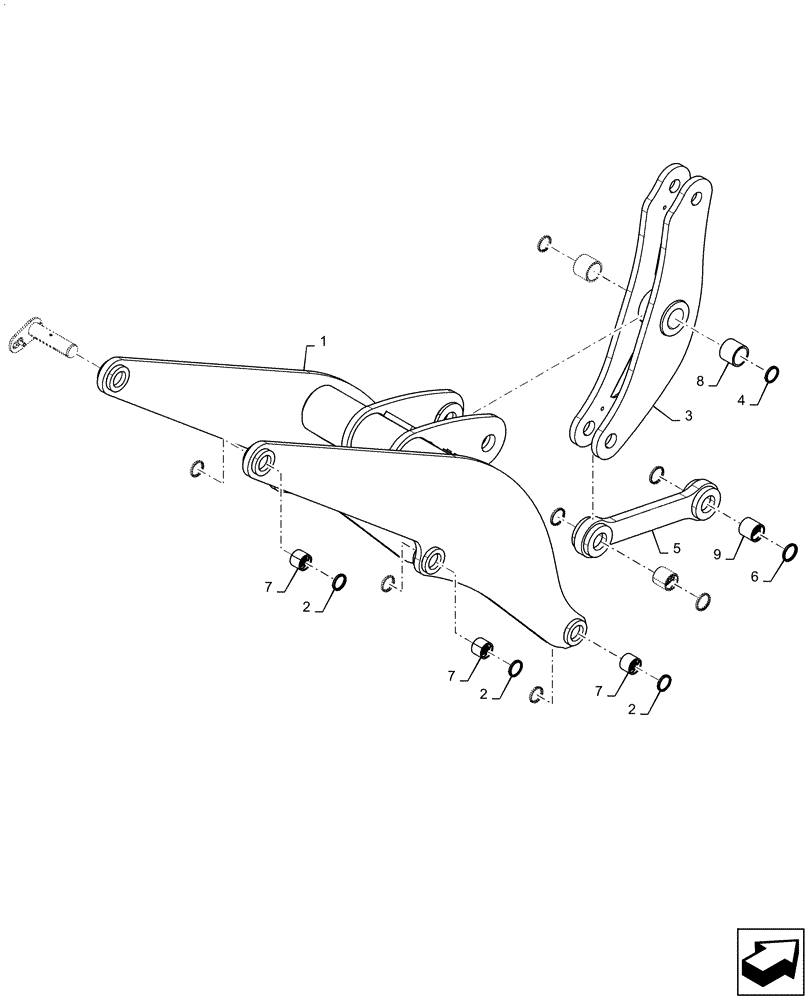

Запчасти Case 521F (39.105.02[03]) - LIFT ARM COMPONENTS, XR (39) - FRAMES AND BALLASTING

1

84136676

LIFT ARM

Assembly, Main, XR

1шт.

2

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

Main Lift Arm Assembly

12шт.

3

87330116

BELLCRANK

Assembly, XR

1шт.

4

365523A1

WIPER SEAL

Bellcrank Assembly

2шт.

5

87395744

LINK,863.8mm L

Bucket Dump

1шт.

6

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Bucket Dump Link

4шт.

7

87613439

BUSHING,63.8mm ID x 76.31mm OD x 58mm L

Lift Arm Assembly

6шт.

8

87613426

BUSHING

Bellcrank Assembly Pivot

2шт.

9

87613444

BUSHING,70.16mm ID x 82.66mm OD x 78mm L

Bucket Dump Link

2шт.
