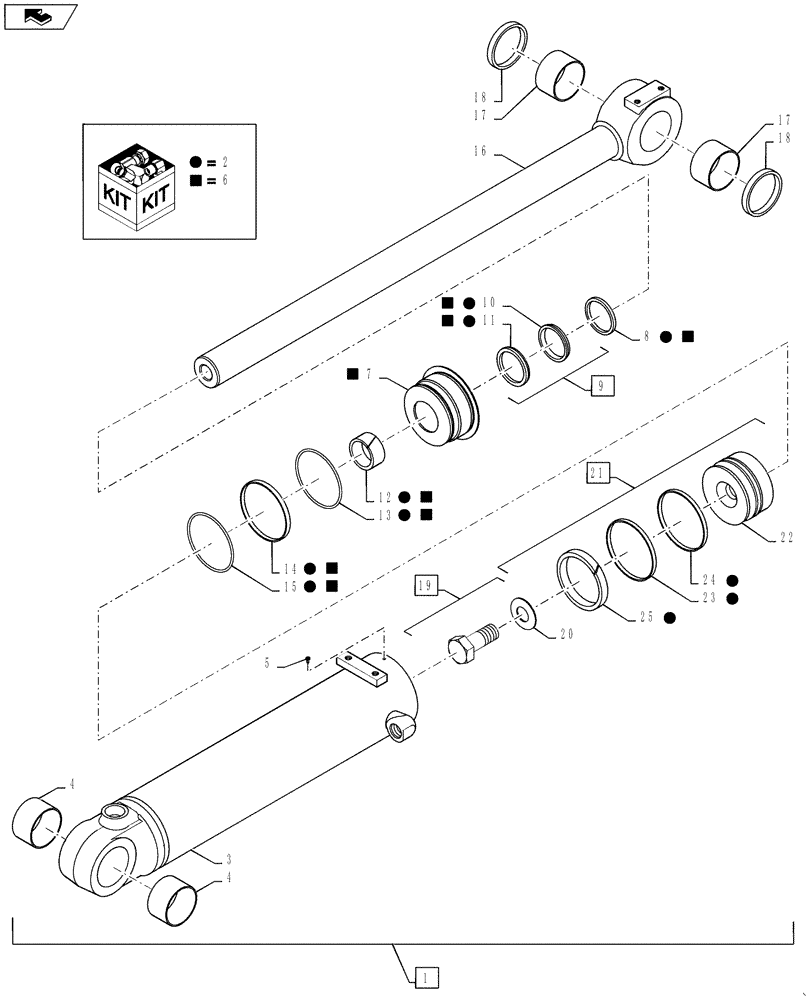

Запчасти Case 521F (39.105.02[01]) - CYLINDER ASSY TILT (XR AND LR) (39) - FRAMES AND BALLASTING

1

87695546

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 529.2mm Stroke

XR Bucket Tilt, 114 ID x 530 mm Stroke; Incl. Refs. 1 - 25

1шт.

87695546R

REMAN-HYD CYLINDER

521F, TIER 2/ TIER 4, BOTH (1/12-)

1шт.

87695546C

CORE-HYD CYLINDER

Return Number

1шт.

2

87434291

SEAL KIT

XR Tilt Cylinder; Incl. Refs. 8 - 15, 24, 25 l

1шт.

3

336395A1

TUBE,114.15 mm ID, 783.5 mm Length

Incl. Ref. 4

1шт.

4

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

63.5 Dia.

2шт.

5

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

336379A1

GLAND

Assembly; Incl. Refs. 7-15

1шт.

7

336378A1

GLAND

Packing

1шт.

8

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

9

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Incl. Refs. 10.11

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL, ROD Must Order # 9

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL, BUFFER Must Order # 9

1шт.

12

336041A1

BUSHING

Rod, 63.5 Dia.

1шт.

13

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

14

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

Backup

1шт.

15

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

16

398355A1

ROD

Assy, 63.5 Dia; Incl. Ref. 17

1шт.

17

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

63.5 Dia.

2шт.

18

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

63.5 Dia

4шт.

19

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

Washer Must Order # 19

1шт.

21

336377A1

PISTON

Incl. Refs. 22-25

1шт.

22

336376A1

PISTON

114.3 Dia Cylinder; 63.5 Dia Rod

1шт.

23

336029A1

SEAL,115.75mm ID x 111.02mm OD x 6.96mm Thk

Piston 114.3 Dia.

1шт.

24

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEAL RING Loader, 114.3 Dia.

1шт.

25

336045A1

RING

Wear

1шт.
