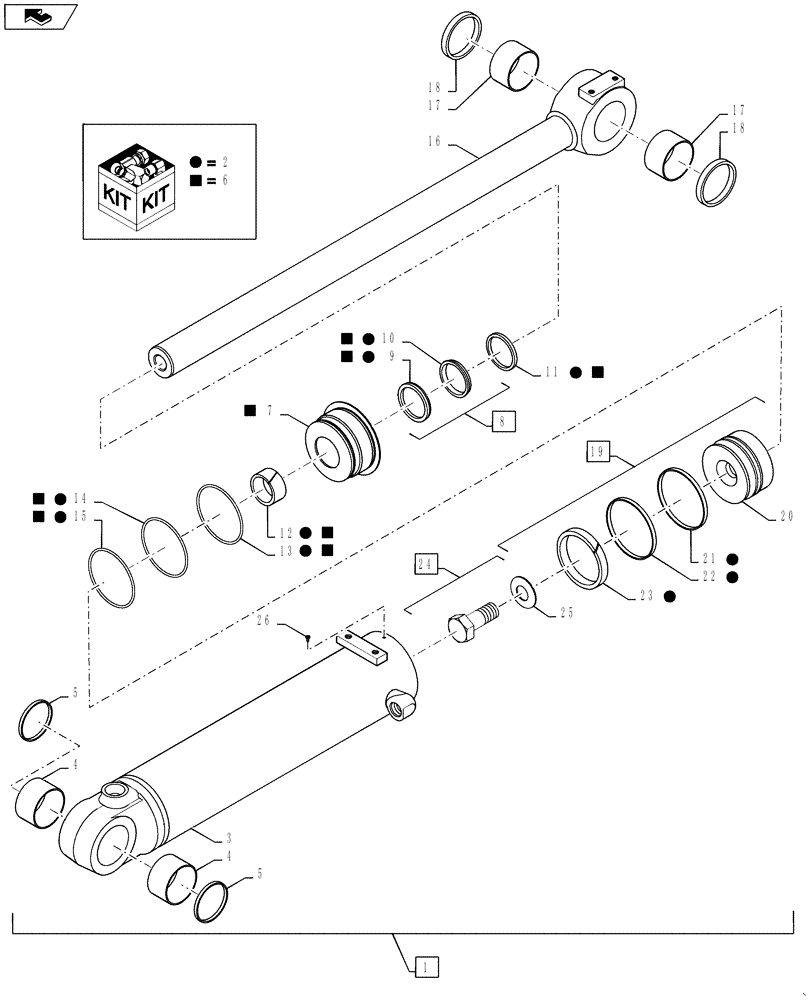

Запчасти Case 521F (39.105.01[01]) - LIFT ARM CYLINDER ASSEMBLY, Z BAR (39) - FRAMES AND BALLASTING

1

87366673

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 529.2mm Stroke

Z-Bar Bucket Tilt, 114 ID x 529 mm; Incl. Refs. 1 - 26

1шт.

87366673R

REMAN-HYD CYLINDER

521F TIER 2 (INT), 521F TIER 4 (NA) All (1/12-)

1шт.

87366673C

CORE-HYD CYLINDER

Return Number

1шт.

2

87434291

SEAL KIT

Incl. Refs. 9 -15, 21, 23,l

1шт.

3

336395A1

TUBE,114.15 mm ID, 783.5 mm Length

Incl. Ref. 4

1шт.

4

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

2шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

2шт.

6

336379A1

GLAND

Incl. Ref. 7-15 Order Components

1шт.

7

336378A1

GLAND

1шт.

8

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Seal; Incl. Rod And Buffer Seals, Refs. 9,10

1шт.

9

SEAL, ROD Must Order #8

1шт.

10

SEAL, BUFFER Must Order # 8

1шт.

11

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

12

336041A1

BUSHING

1шт.

13

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

14

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

1шт.

15

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

16

336391A1

ROD ASSY.

63,5 mm dia; Incl. Ref. 17

1шт.

17

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

Replaces 336388A1

2шт.

18

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

2шт.

19

336377A1

PISTON

Assembly; Incl. Refs. 20-23

1шт.

20

336376A1

PISTON

1шт.

21

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING Loader

1шт.

22

336029A1

SEAL,115.75mm ID x 111.02mm OD x 6.96mm Thk

Piston

1шт.

23

336045A1

RING

Wear

1шт.

24

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 25

1шт.

25

Washer Must Order # 24

1шт.

26

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.
