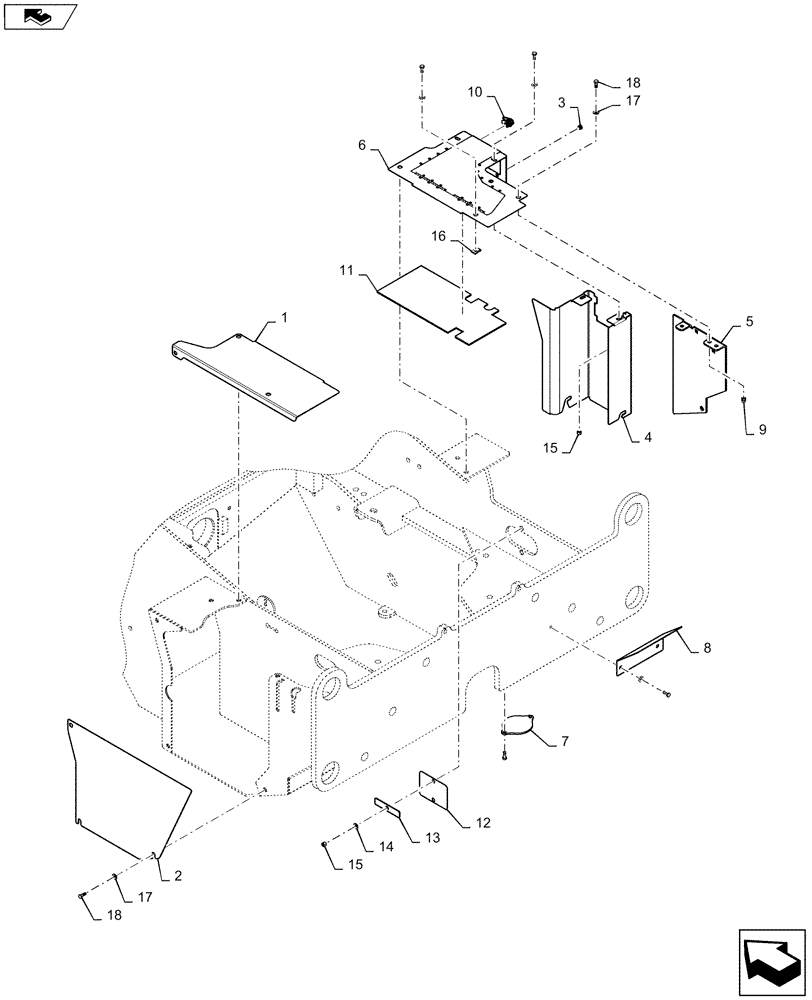

Запчасти Case 521F (39.100.07[01]) - BATTERY AND SCR COVER ASN NDF219384 (39) - FRAMES AND BALLASTING

1

84469003

COVER

Battery, Top Left, NA

1шт.

1

47506123

COVER

Battery, Top Left, EU

1шт.

2

84469001

COVER

Battery, LH, NA

1шт.

2

47506125

COVER

Battery, LH, EU

1шт.

3

87524552

GROMMET

2шт.

4

47463235

PLATE

1шт.

5

47463227

PLATE

1шт.

6

47463237

PLATE

NA

1шт.

6

47537296

COVER

EU

1шт.

7

84260723

COVER PLATE

Tank Drain

1шт.

8

47464799

PLATE

1шт.

9

390618A1

INSERT,Knurled Open, M10 x 13.46mm OD

4шт.

10

8602791

LOCK

Control Access

1шт.

11

47464805

PANEL

Insulator

1шт.

12

84575220

GASKET,6mm Thk

1шт.

13

84581924

BRACKET

2шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

16

833-40310

NUT,M10, U

3шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

23шт.

18

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

20шт.
