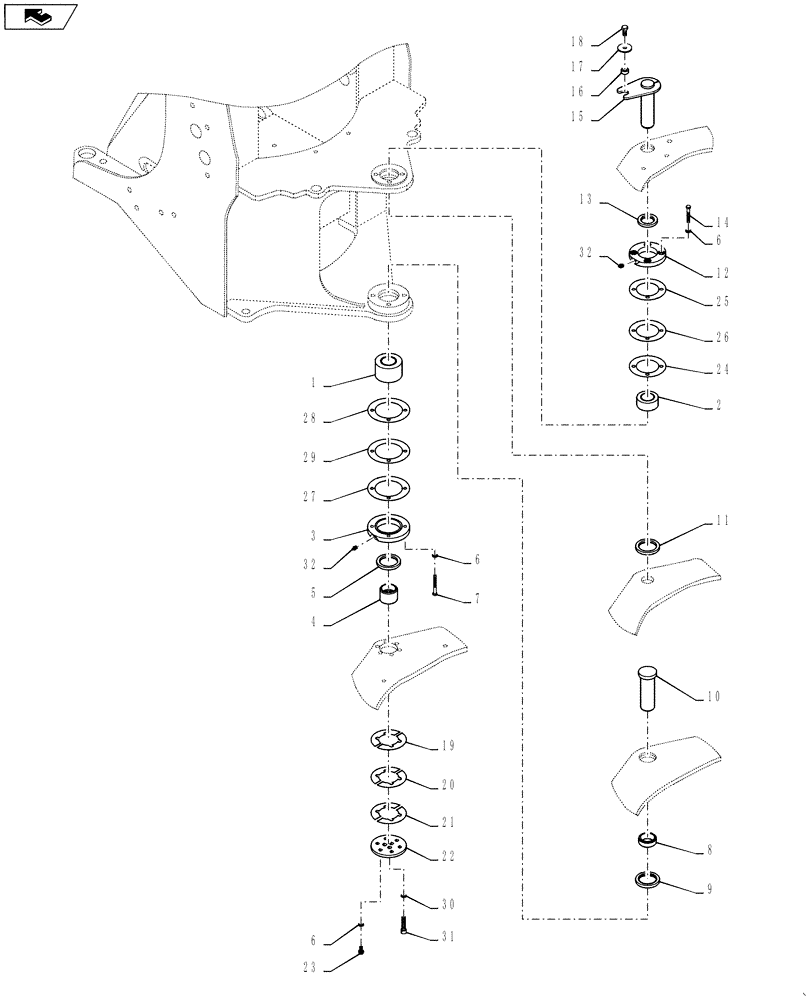

Запчасти Case 521F (39.100.04) - ARTICULATION JOINT (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
L125006
BEARING ASSY,63.5mm ID x 112.71mm OD x 60.33mm W
Lower Pivot
1шт.
2
391276A1
TAPERED BEARING,57.15mm ID x 96.84mm OD x 42.59mm W
Upper Pivot
1шт.
3
87365679
RETAINER
Retainer; Lower Pivot
1шт.
4
87613420
SPACER,63.54mm ID x 79.4mm OD x 62.47mm L
1шт.
5
356210A1
SEAL
Lower; Lower Pivot
1шт.
6
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
14шт.
7
827-12100
BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9
4шт.
8
87623437
SPACER,63.55mm ID x 79.4mm OD x 29.5mm L
Lower Pivot Bearing
1шт.
9
356187A1
SEAL
Upper; Lower Articulation Plate
1шт.
10
84361291
PIVOT PIN,63.48mm OD x 182mm L
Lower Pivot
1шт.
11
391278A1
SEAL
Upper Articulation Plate
1шт.
12
391280A1
RETAINER
Upper Pivot
1шт.
13
391281A1
SEAL
Upper Articulation Plate
1шт.
14
827-12080
BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9
4шт.
15
87369336
PIN,57.14mm OD x 230mm L
Upper Pivot
1шт.
16
L125100
SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk
1шт.
18
627-16035
BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd
1шт.
19
L118980
SHIM,90mm ID x 160mm OD x 0.28mm Thk
(.010") One half; Lower plate
1шт.
20
L118983
SHIM,90mm ID x 160mm OD x 0.11mm Thk
(.004") One half; Lower plate
1шт.
21
L118982
SHIM,90mm ID x 160mm OD x 0.54mm Thk
(.020") One half; Lower plate
1шт.
22
84339265
PLATE
Lower Pin
1шт.
23
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
6шт.
24
L118987
SHIM,0.1mm Thk
(.004") Upper pivot
1шт.
25
L118986
SHIM,0.5mm Thk
(.020") Upper pivot
1шт.
26
L119202
SHIM,0.25mm Thk
(.010") Upper pivot
1шт.
27
356198A1
SHIM,114mm ID x 190mm OD x 0.50mm Thk
0,50 mm (0,020 in); Lower Pivot
1шт.
28
356197A1
SHIM
0,25 mm (0,010 in); Lower Pivot
1шт.
29
356191A1
SHIM
0,10 mm (0,004 in); Lower Pivot
1шт.
30
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
3шт.
31
863-16070
HEX SOC SCREW,M16 x 70mm, Cl 12.9
3шт.
32
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
Выбрано товаров: 32
