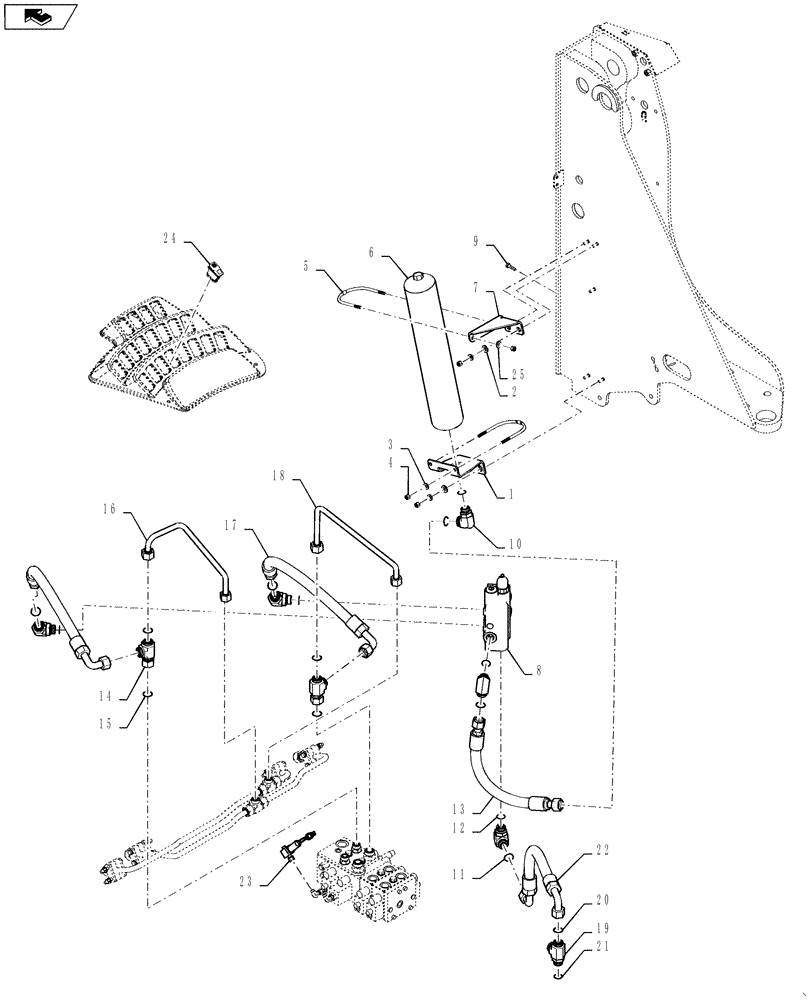

Запчасти Case 521F (35.701.02) - RIDE CONTROL INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87393646

BRACKET

Ride Control Accumulator

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

3

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

5

87492028

U-BOLT

Coined

2шт.

6

87393434

ACCUMULATOR,3.8L

Ride Control

1шт.

7

87403347

BRACKET

Ride Control Accumulator, Top

1шт.

8

87393431

VALVE

Ride Control, See Fig. 35.701.02 (01)

1шт.

9

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

10

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 11 - 12

1шт.

11

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

13

87452278

HOSE ASSY.

Ride Control Accumulator, 588 mm (23 - 1/8 in)

1шт.

14

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl 15

2шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

16

87452281

TUBE,16mm ID x19.05mm OD x 248mm L

Ride Control, Head

1шт.

17

87452280

HOSE ASSY.

Head Or Rod, 873mm (34-3/8 in)

2шт.

18

87452283

TUBE,16mm ID x 19mm OD x 298mm L

Ride Control, Rod

1шт.

19

700-407

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 20 - 21

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

21

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

22

87452279

HOSE ASSY.

Ride Control Tank, 723 mm (28 - 15/32 in)

1шт.

23

397547A1

FITTING

Pressure Switch

1шт.

24

87350055

SWITCH

Ride Control

1шт.

25

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
