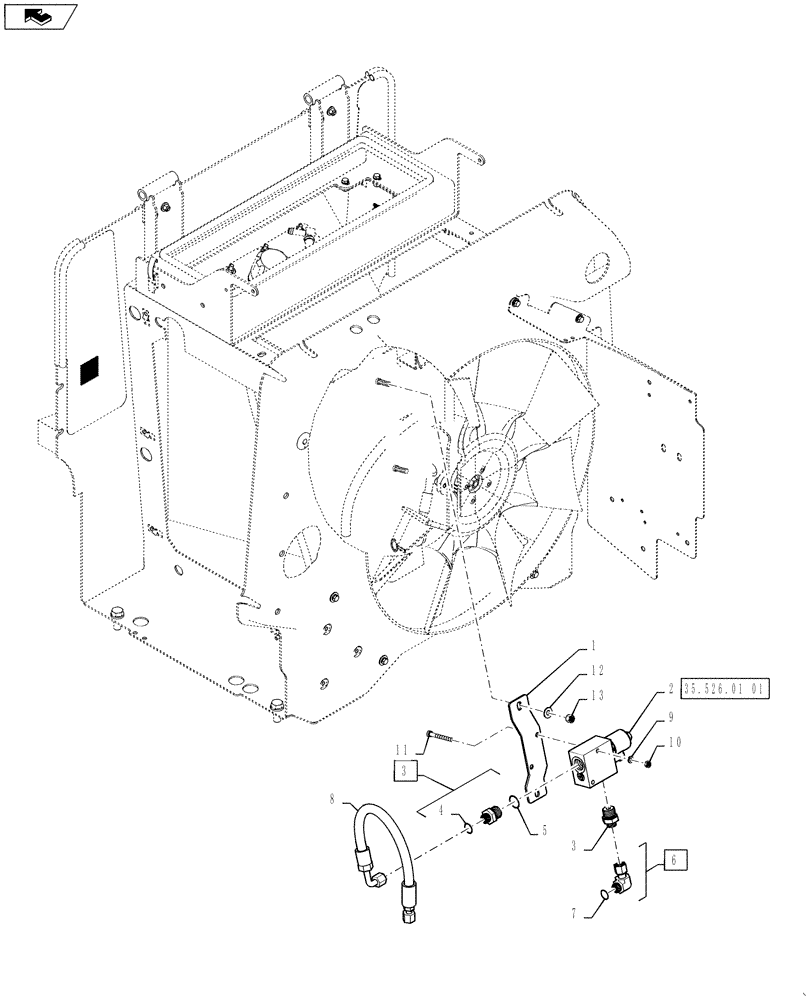

Запчасти Case 521F (35.526.01) - CAB HEAT HEAT LOAD VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84528111

BRACKET, SUPPORTING

Support

1шт.

2

84483998

CONTROL VALVE

Combination, See Fig 35.526.01 (01)

1шт.

3

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl 4 - 5

2шт.

4

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 7

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

84528109

HOSE ASSY.,12.7mm ID x 585mm L, SAE 100R17

Valve to Fan

1шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
