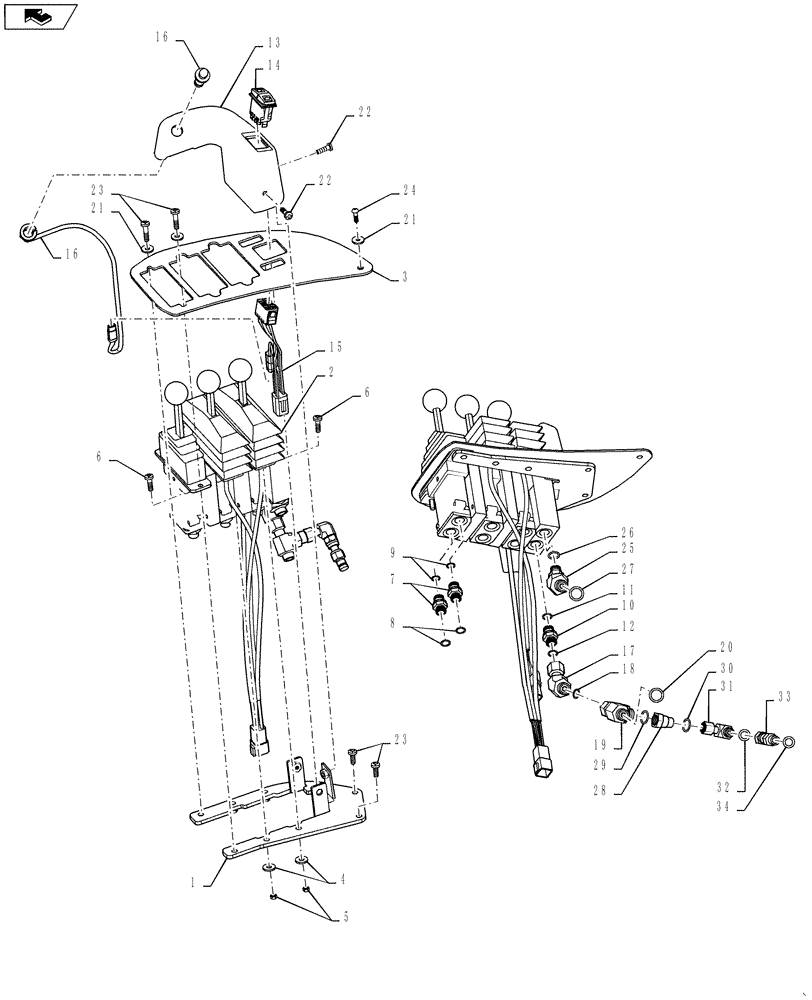

Запчасти Case 521F (35.359.02) - THREE LEVER CONTROL INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87534053

BRACKET

Controller

1шт.

2

407869A2

VALVE, CONTROL

3 Lever Loader Control

1шт.

3

87515559

BEZEL

3 Lever Loader Control

1шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

7

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 8 - 9

2шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

9

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

10

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 11 - 12

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

87523729

COVER

Switch

1шт.

14

400833A2

SWITCH

F-N-R

1шт.

15

87324389

WIRE HARNESS

F-N-R Switch

1шт.

16

402390A1

SWITCH

Downshift

1шт.

17

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 18

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

19

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 20

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

21

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

3шт.

22

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

23

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

5шт.

24

1270762C1

SELF-TAP SCREW

1шт.

25

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 26 - 27

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

28

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

Incl 29 - 30

1шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

30

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

31

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 32

1шт.

32

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

33

190117A1

COUPLING

Incl 33

1шт.

34

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
