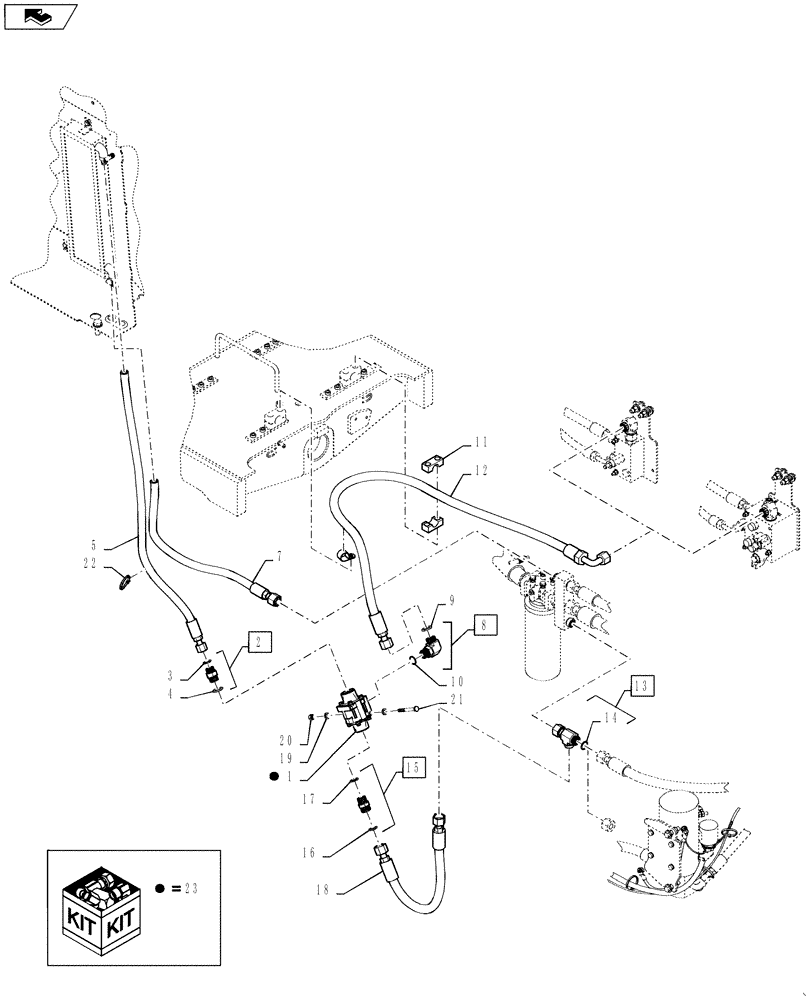

Запчасти Case 521F (35.300.04) - THERMAL BYPASS VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87326981

BY-PASS VALVE

Thermal; Incl. Ref. 23

1шт.

2

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl Ref 3-4

1шт.

3

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

5

87703589

HOSE ASSY.,Hyd, 5/8" ID x 1138mm L

Bypass Valve to Cooler; 1138 mm (44 - 13/16 in)

1шт.

6

515-25254

CLAMP,1", Insul, 1/2" Bolt

Not Shown

1шт.

7

87476355

HOSE ASSY.,Hyd, 5/8" ID x 840mm L

Cooler Return; 941 mm (37 - 1/32 in)

1шт.

8

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 9-10

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

10

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

11

372453A1

BLOCK

Mounting

2шт.

12

87634159

HOSE ASSY.,Hyd, 3/4" ID x 1739mm L

Fan Valve to Bypass; 1739 mm (68 - 15/32 in)

1шт.

13

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl. Ref. 14

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

15

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs.16-17

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

17

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

18

87453664

HOSE ASSY.,Hyd, 3/4" ID x 712mm L

Bypass to Cooler; 712 mm (28 - 1/32 in)

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

21

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

23

87328377

REPAIR KIT

For 87326981 Thermal Bypass Valve; Contains: Thermal Element Assy And Seals; Not Illustrated

1шт.
