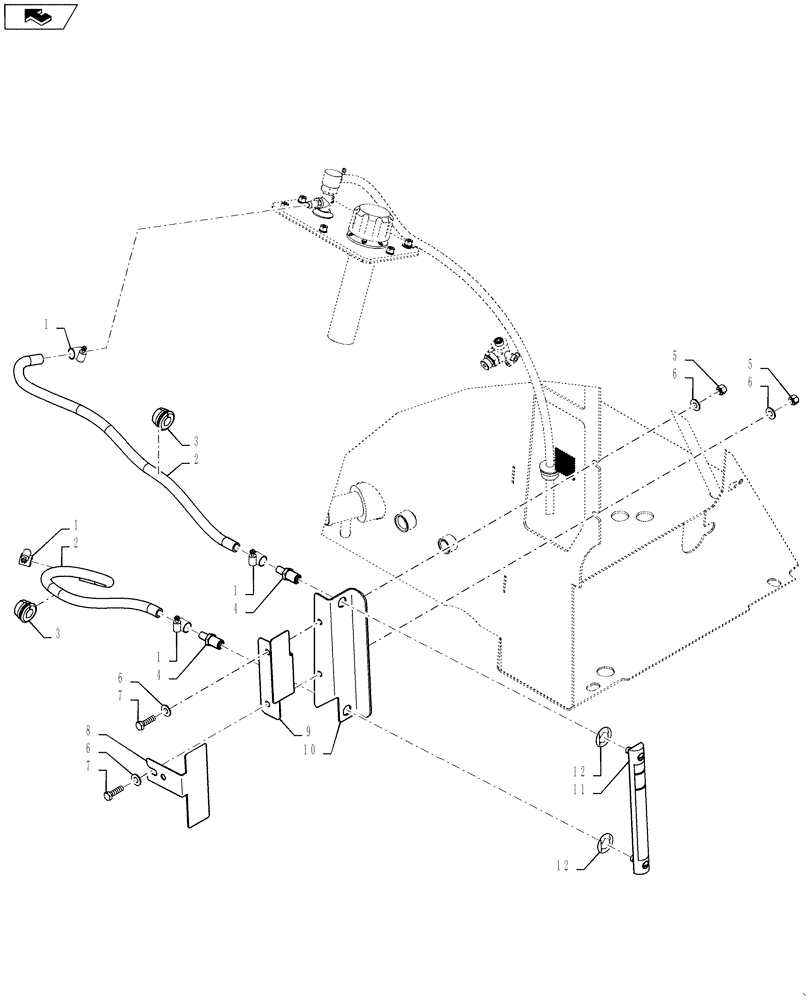

Запчасти Case 521F (35.300.01) - HYDRAULIC OIL RESERVOIR SIGHT GAUGE (35) - HYDRAULIC SYSTEMS

1

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

2

384105A1

RADIATOR HOSE,12.70 mm ID x 740.00, SAE 100R6

Upper Sight Gauge

2шт.

3

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

2шт.

4

L125836

FITTING

Sight Gauge

4шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

8

403653A1

BRACKET

Sight Gauge

1шт.

9

87671627

BRACKET

Sight Gauge

1шт.

10

87402385

BRACKET

Sight Gauge

1шт.

11

87425336

GAUGE

Sight

1шт.

12

131-141

PUSH-ON NUT,.74", Push-on

2шт.
