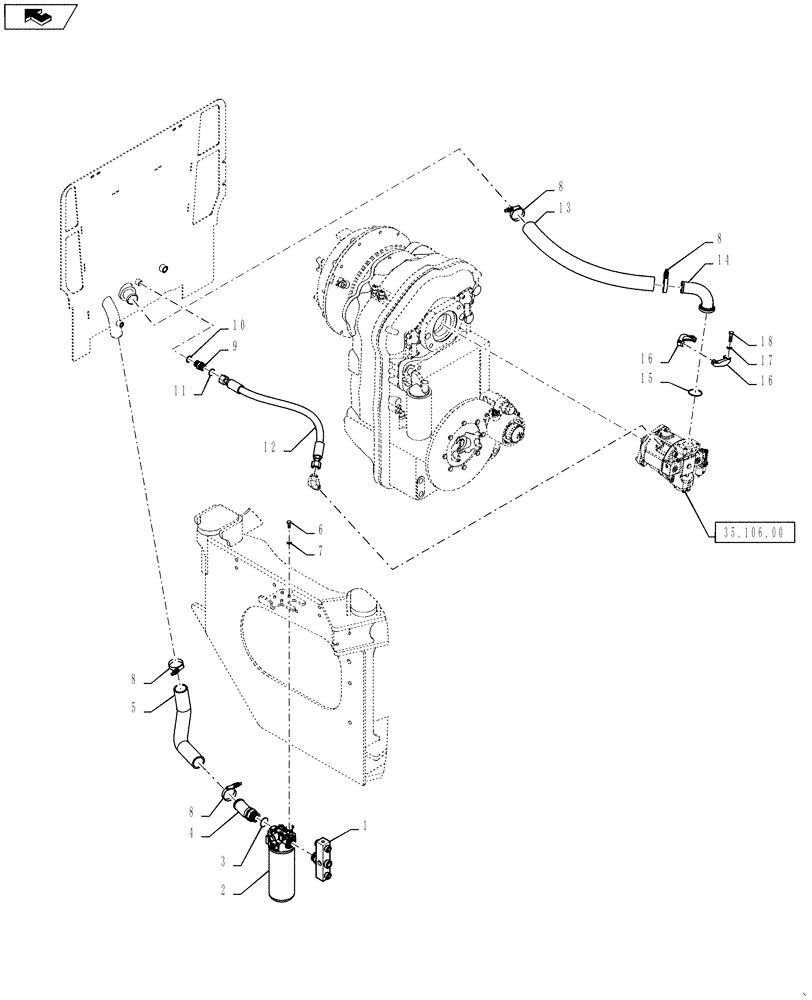

Запчасти Case 521F (35.106.02) - MAIN HYDRAULIC PUMP LINES (35) - HYDRAULIC SYSTEMS

1

87577181

MANIFOLD VALVE

1шт.

2

NSS

NOT SOLD SEPARAT

See Fig. 35.106.02 (01)

1шт.

3

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

4

390208A2

ADAPTER

Filter

1шт.

5

429045A1

HOSE

Tank Return

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

8

254026A1

HOSE CLAMP,44.45mm - 66.67mm

4шт.

9

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 10 - 11

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

12

87704891

HOSE ASSY.

Drain

1шт.

13

87479709

HYDRAULIC HOSE,5.08 mm ID x 755.00 mm, SAE 100R4 CLASS 4 TYPE 2

Pump Suction

1шт.

14

365417A1

TUBE,50.8 mm OD, 130, 100 mm Length

Pump Suction

1шт.

15

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

16

A14141

FLANGE

Split Half Clamp

2шт.

17

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

18

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.
