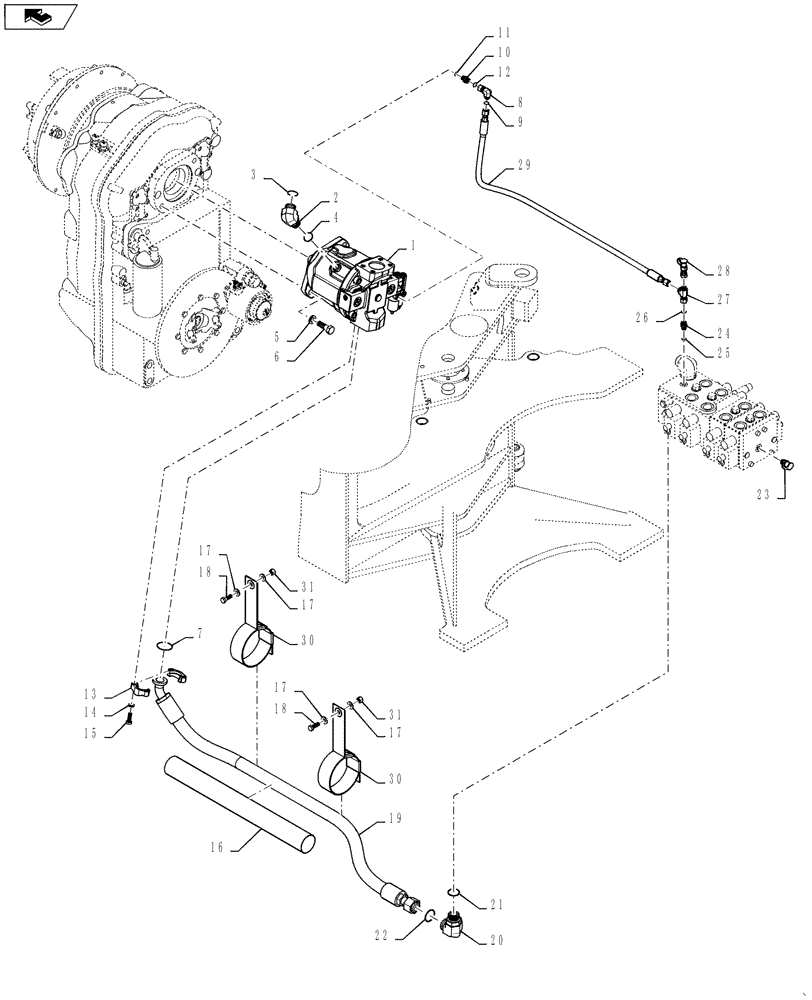

Запчасти Case 521F (35.106.01) - MAIN HYDRAULIC PUMP INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84136352

HYDRAULIC PUMP,71 CC

Main, For Assembly See 35.106.01 (01)

1шт.

84136352R

REMAN-HYD PUMP

521F TIER 4, 521F TIER 2 Both (1/12-)

1шт.

84136352C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 3 - 4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

6

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

7

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

8

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 9

1шт.

9

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

10

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 11 - 12

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

13

A12306

FLANGE

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

15

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

16

401525A1

HOSE PROTECTION,60.00 mm ID x 600.00 mm

1шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

18

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

19

404041A1

HOSE ASSY.

Pump Pressure

1шт.

20

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 21 - 22

1шт.

21

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

22

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

23

178889A1

DIAGNOSTIC COUPLER

Diagnostic

1шт.

24

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 25 - 26

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

26

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

27

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 26

1шт.

28

190117A1

COUPLING

1шт.

29

366008A1

HOSE ASSY.

Pump Load Sensing

1шт.

30

401527A2

STRAP

2шт.

31

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
