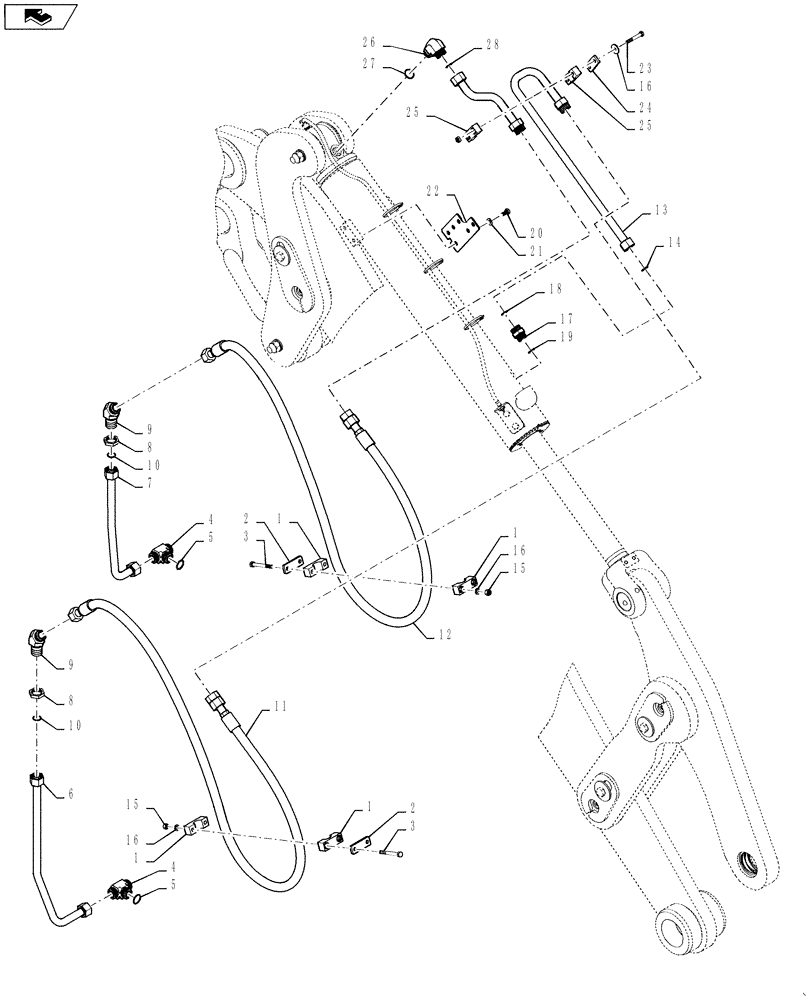

Запчасти Case 521F (35.100.01) - LOADER CONTROL LINES, XT (35) - HYDRAULIC SYSTEMS

1

87452747

CLAMP,33.4mm ID

Tube Mounting

4шт.

2

8500858

PLATE

Clamp Cover

4шт.

3

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

8шт.

4

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

Incl 5

2шт.

5

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

6

87447920

HYD TUBE,19.05 mm OD

XT Tilt Head Right Hand

1шт.

7

87447922

HYD TUBE,19.05 mm OD

XT Tilt Rod Right Hand

1шт.

8

701-1249

BHD LOCK NUT,1-3/16" - 12

4шт.

9

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

Incl 10

4шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

87304893

HOSE ASSY.,19.05mm ID x 2175mm L, SAE 100R12

XT Tilt Base

2шт.

12

87304892

HOSE ASSY.,19.05mm ID x 2255mm L, SAE 100R12

XT Tilt Rod

2шт.

13

87447928

HYD TUBE,19.05 mm OD x 259, 115 mm L

XT Tilt Base Left, Incl 14

2шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

32шт.

17

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 18 - 19

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

20

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

22

87447893

BRACKET

XT Tilt Tubes Right Hand

1шт.

23

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

8шт.

24

367658A1

PLATE

Clamp Cover Plated

14шт.

25

379374A1

BLOCK

8шт.

26

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 27 - 28

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.
