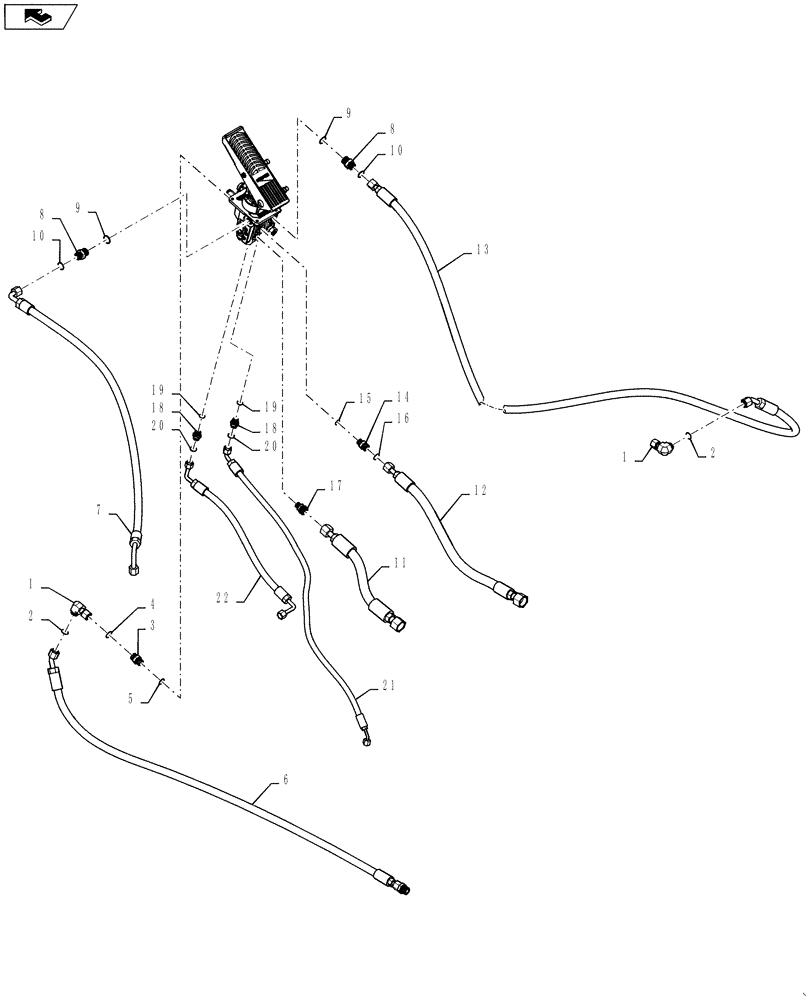

Запчасти Case 521F (33.202.13) - BRAKE VALVE HYDRAULIC LINES (33) - BRAKES & CONTROLS

1

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 2

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 4 - 5

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

6

84365893

FLEXIBLE HOSE,12.7mm ID x 1498mm L

Brake To Tank

1шт.

7

84365815

FLEXIBLE HOSE,12.7mm ID x 1067mm L, SAE 100R17

Brake Fan Valve

1шт.

8

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 9 - 10

1шт.

9

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

84365805

FLEXIBLE HOSE

Brake Accumulator Left

1шт.

12

84534893

FLEXIBLE HOSE,15.88mm ID x 693mm L, SAE 100R17

Brake Accumulator Right

1шт.

13

84365896

FLEXIBLE HOSE

Brake Pump Pressure

1шт.

14

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 15 - 16

1шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

16

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

87389189

HYD CONNECTOR,12.5 - 14 ORFS x 7 - 14 ORB

1шт.

18

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 19 - 20

2шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

20

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

21

84365810

FLEXIBLE HOSE,9.53mm ID x 616mm L, SAE 100R17

Parking Brake Accumulator

1шт.

22

84365811

FLEXIBLE HOSE,6.35mm ID x 1159mm L, SAE 100R17

Parking Brake

1шт.
