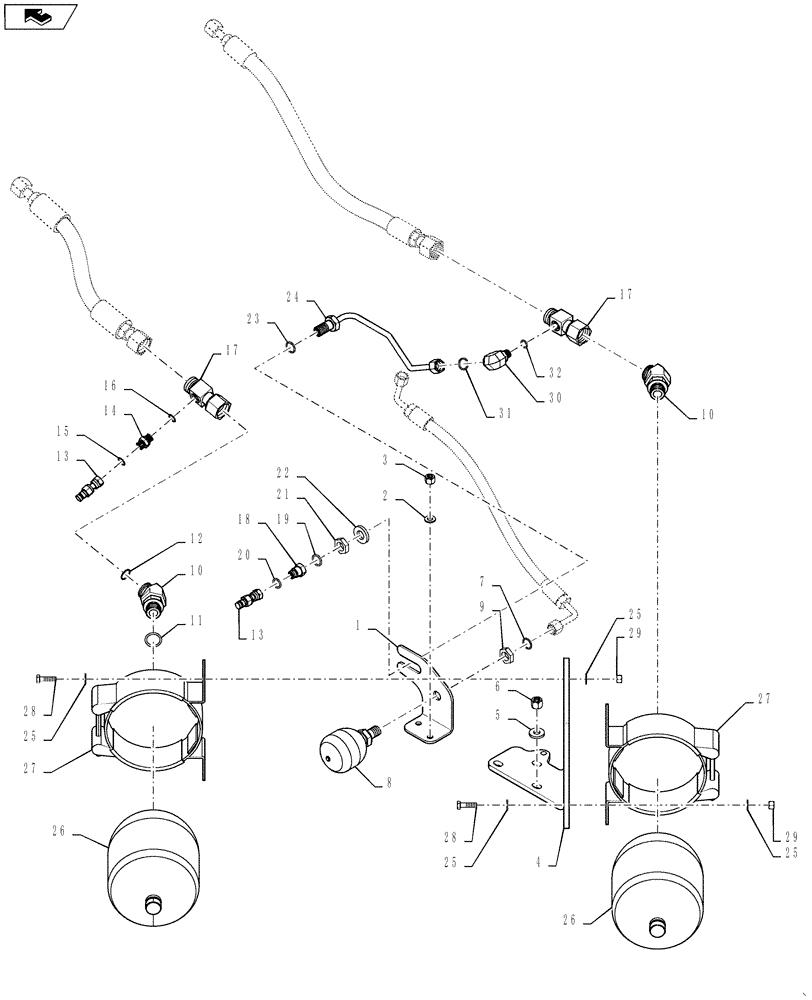

Запчасти Case 521F (33.202.12) - BRAKE ACCUMULATOR INSTALLATION (33) - BRAKES & CONTROLS

1

87724967

BRACKET

Accumulator

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

84554181

BRACKET

Brake Accumulator

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

6

8501315

CLAMP,167mm - 175mm

3шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

8

8500209

ACCUMULATOR

Parking Brake

1шт.

9

701-909

NUT,11/16" - 16

2шт.

10

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 11 - 12

2шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

13

190117A1

COUPLING

2шт.

14

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 15 - 16

1шт.

15

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

16

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

17

372033A1

FITTING

Incl O-Rings

2шт.

18

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

Incl 19 - 20

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

701-909

NUT,11/16" - 16

2шт.

22

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

24

87724968

TUBE,9.525 mm OD

Diagnostic Fitting

1шт.

25

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

26

84353396

ACCUMULATOR

Brake Main

2шт.

27

8501315

CLAMP,167mm - 175mm

Accumulator

2шт.

28

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

29

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

30

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 31 - 32

1шт.

31

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

32

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
