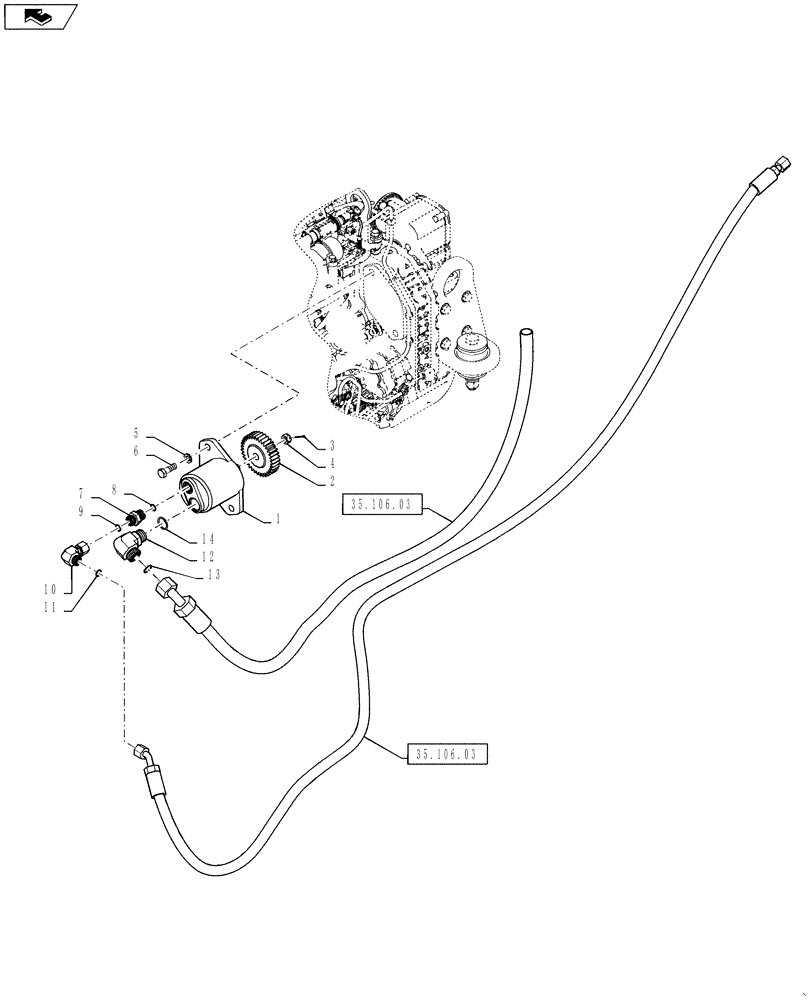

Запчасти Case 521F (33.202.10) - HYDRAULIC PUMP, BRAKES (33) - BRAKES & CONTROLS

1

87402776

HYDRAULIC PUMP,14 CC

Brake

1шт.

1

87402776R

REMAN-HYD PUMP

1шт.

1

87402776C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86985892

GEAR

Pump Drive

1шт.

3

432-616

COTTER PIN,3/32" x 1"

1шт.

4

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

5

892-11012

LOCK WASHER,M12

2шт.

6

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

7

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 8 - 9

1шт.

8

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

10

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 11

2шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 13 - 14

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

14

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.
