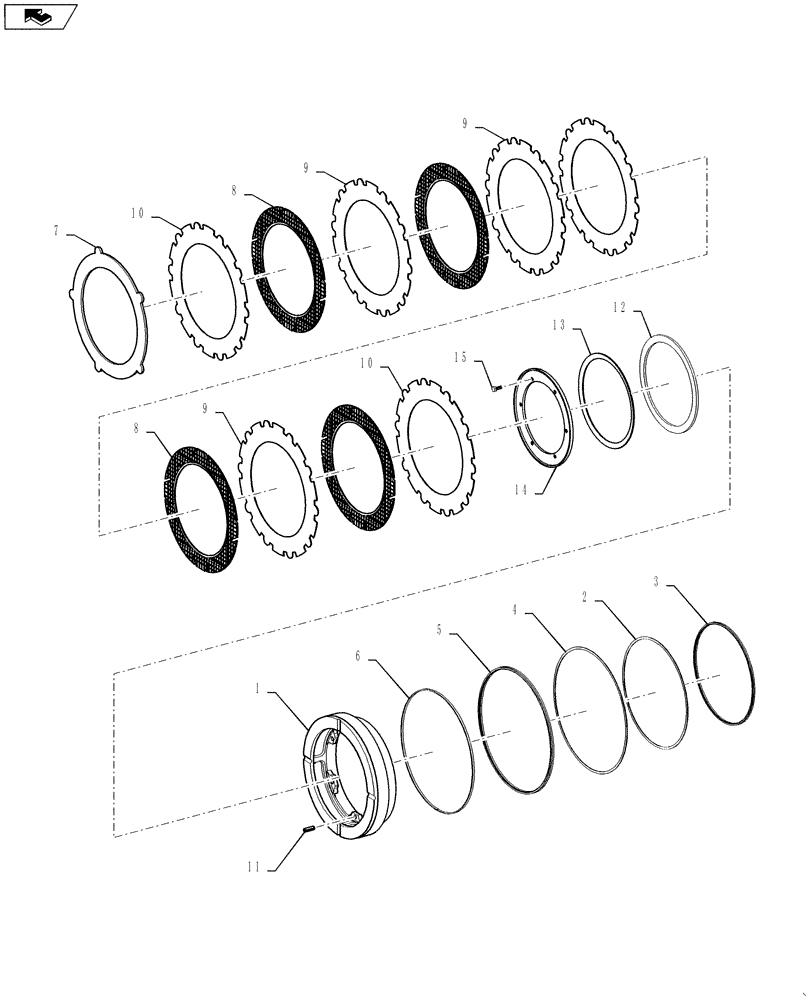

Запчасти Case 521F (33.202.07) - REAR AXLE BRAKES, LIMITED SLIP (33) - BRAKES & CONTROLS

1

84353913

PISTON

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

Brake Piston

1шт.

3

8603577

RING

Piston Seal

1шт.

4

8605315

SEAL

Brake Piston

1шт.

5

8603579

RING

Piston Seal Support

1шт.

6

8603580

SNAP RING

Piston Brake Guide

1шт.

7

84150637

SHIM

End

1шт.

8

NSS

NOT SOLD SEPARAT

Incl in 16

4шт.

9

NSS

NOT SOLD SEPARAT

Incl in 16

3шт.

10

NSS

NOT SOLD SEPARAT

Incl in 16

2шт.

11

87743218

PIN

6шт.

12

84329424

CUP WASHER

1шт.

13

84329425

SPRING CUP

1шт.

14

84395485

COVER PLATE

1шт.

15

84395924

SCREW

6шт.

16

87365252

REPAIR KIT

Brake Service Kit, One Kit Per Axle

1шт.
