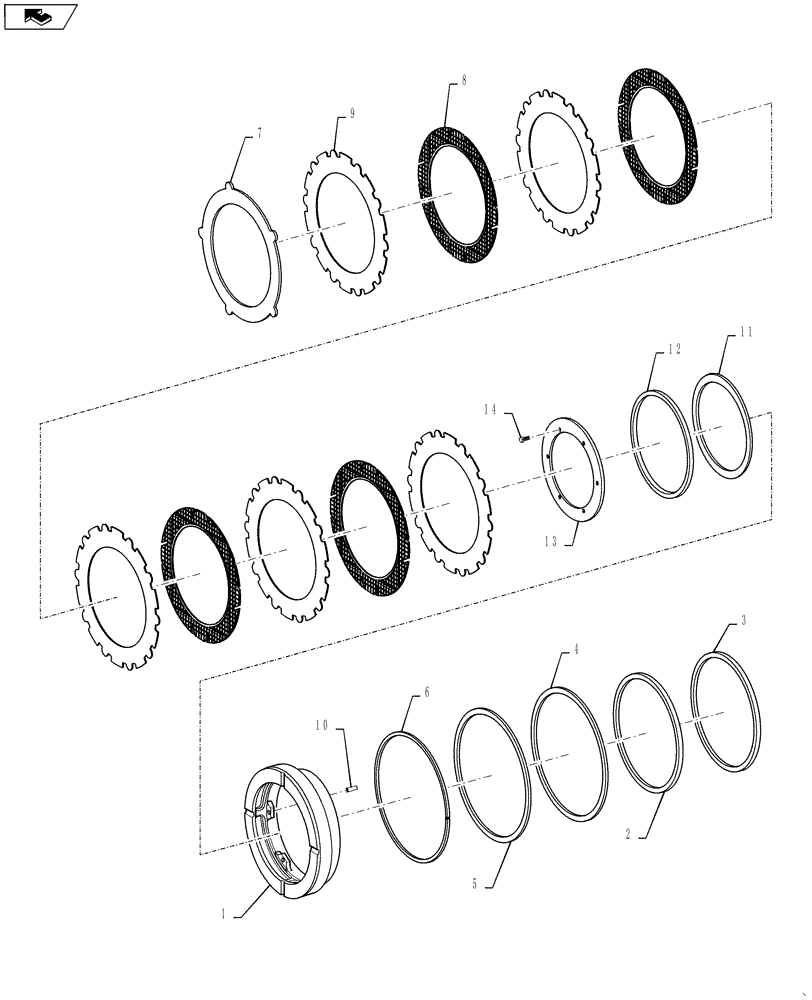

Запчасти Case 521F (33.202.05) - FRONT AXLE BRAKE, LOCKING (33) - BRAKES & CONTROLS

1

84396188

PISTON

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

Brake Piston

1шт.

3

8603577

RING

Piston Support

1шт.

4

8605315

SEAL

Brake Piston

1шт.

5

8603579

RING

1шт.

6

8603580

SNAP RING

1шт.

7

84150637

SHIM

1шт.

8

Available in Kit Only, See 15

4шт.

9

Available in Kit Only, See 15

5шт.

10

87743218

PIN

6шт.

11

84329424

CUP WASHER

1шт.

12

84329425

SPRING CUP

1шт.

13

84329427

PROTECTIVE COVER

1шт.

14

84395924

SCREW

6шт.

15

84572904

SERVICE KIT

Brake Service Kit, One Kit Per Axle

1шт.
