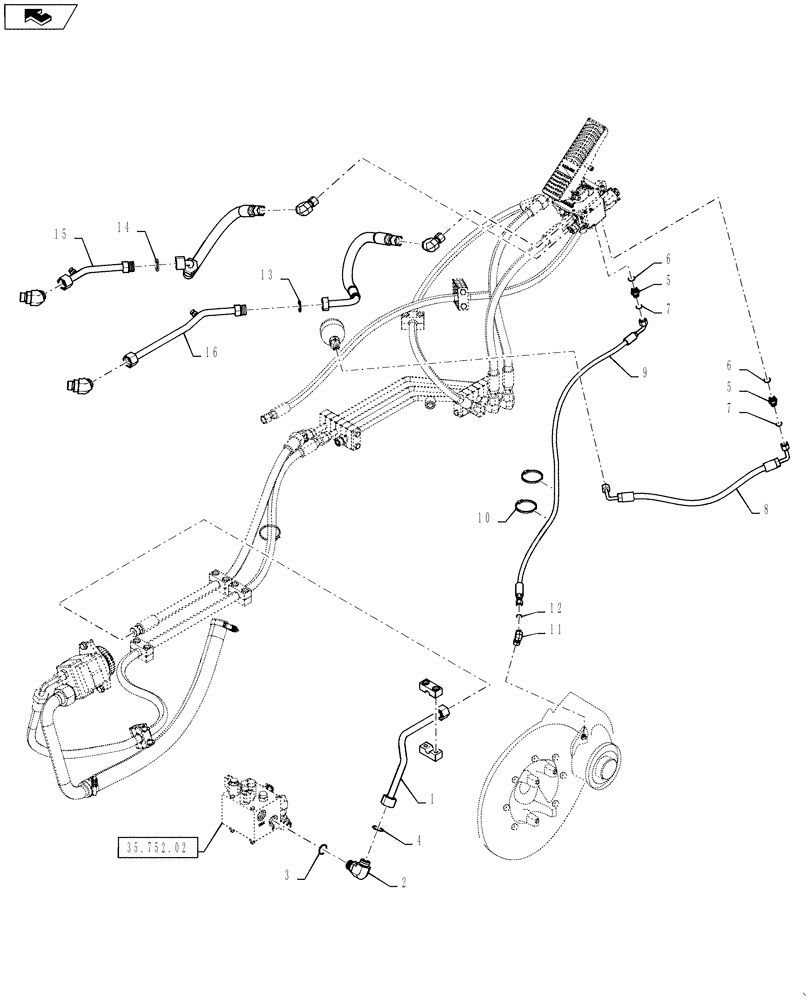

Запчасти Case 521F (33.202.03) - MAIN BRAKE HYDRAULICS, PARKING BRAKE (33) - BRAKES & CONTROLS

1

87658725

TUBE,19.05 mm OD x 290 mm L

Fan Valve

1шт.

2

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order 3-4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

5

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Also Order 6-7

2шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

7

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

8

84362170

HOSE ASSY.

Parking Brake Accumulator

1шт.

9

84373987

HOSE ASSY.

Parking Brake

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

11

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Also Order 12

1шт.

12

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

15

87354290

TUBE,19.05 mm OD

Front Brake Accumulator

1шт.

16

87529279

TUBE,19.055 mm OD x 424 mm L

Rear Brake Accumulator

1шт.
