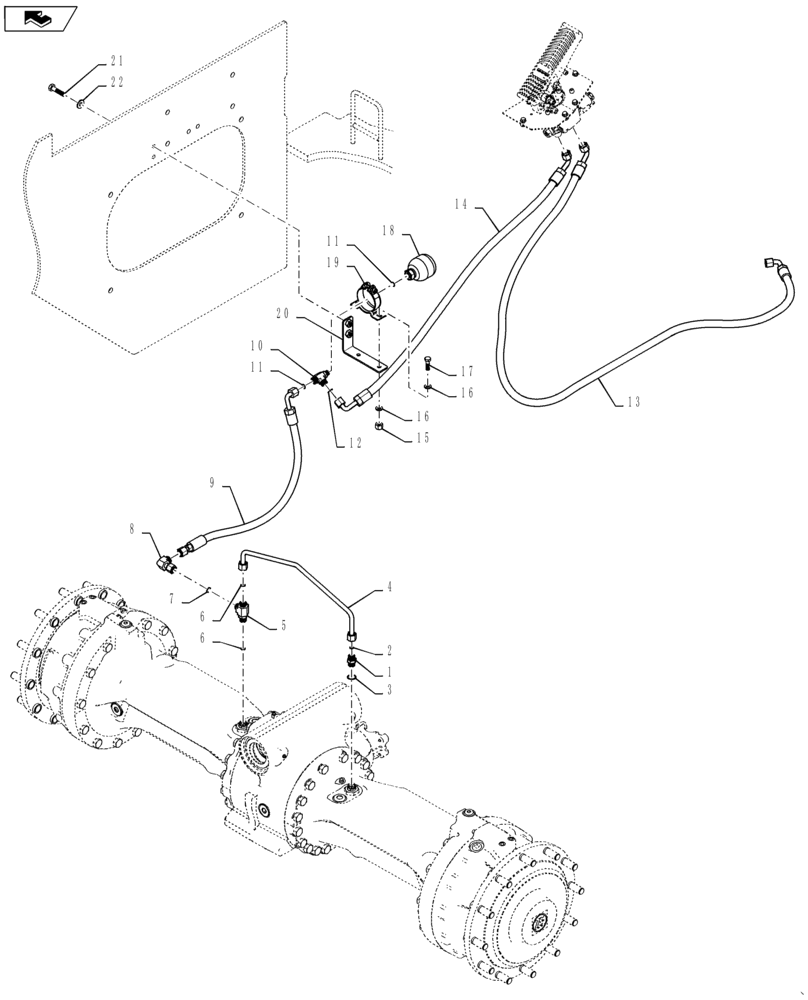

Запчасти Case 521F (33.202.02) - LOCKING FRONT AND REAR AXLE BRAKE LINE INSTALLATION (33) - BRAKES & CONTROLS

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 2 - 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

87552630

TUBE,10.2 mm ID x 12.7 mm OD x 480, 120 mm L

1шт.

5

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 6 - 7

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 6

1шт.

9

84414462

FLEXIBLE HOSE,12.7mm ID x 786mm L, SAE 100R1

Accumulator To Rear Axle

1шт.

10

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

84569574

FLEXIBLE HOSE,12.7mm ID x 2335mm L, SAE 100R1

Brake Valve To Accumulator Front

1шт.

14

84535131

FLEXIBLE HOSE,12.7mm ID x 1138.4mm L, SAE 100R1

Brake Valve To Accumulator Rear

1шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

18

84393492

ACCUMULATOR

Brake Damping

1шт.

19

84272713

CLAMP,73mm - 79mm

2шт.

20

84403440

BRACKET

1шт.

21

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

22

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.
