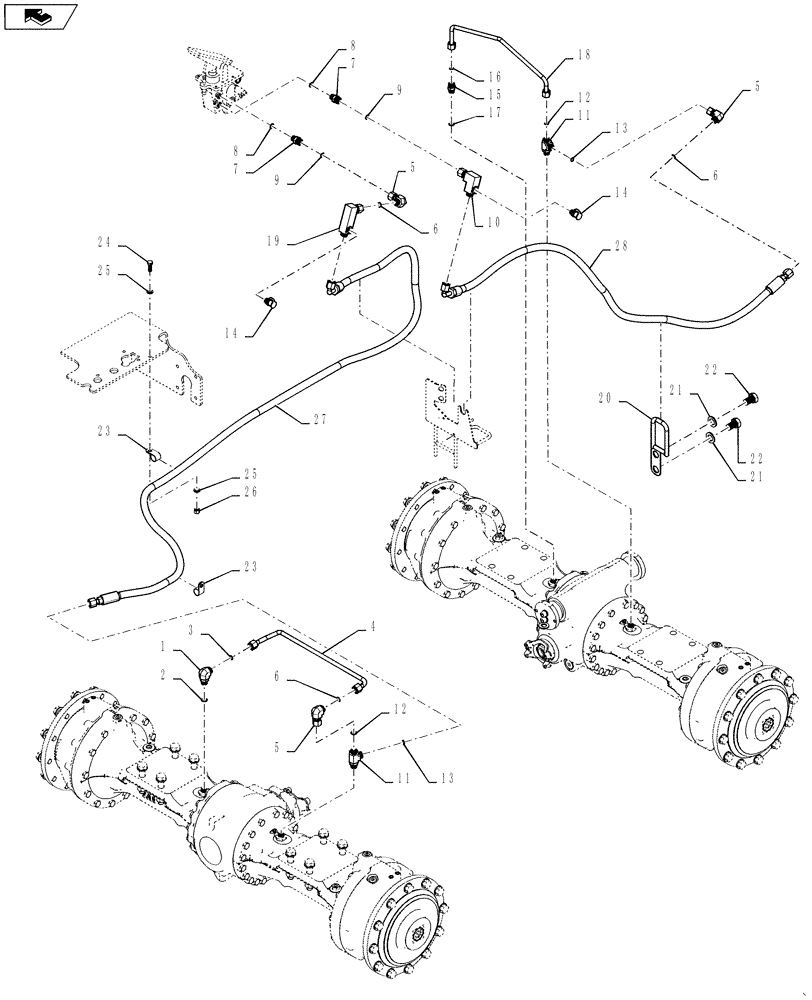

Запчасти Case 521F (33.202.01) - LIMITED SLIP FRONT AXLE BRAKE LINE INSTALLATION (33) - BRAKES & CONTROLS

1

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 2 - 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

87552628

TUBE,10.2 mm ID x 12.7 mm OD x 480, 50 mm L

Front Axle

1шт.

5

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 6

3шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

7

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 8 - 9

2шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

10

377754A1

FITTING

Axle Brakes

1шт.

11

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 12 - 13

2шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

14

178889A1

DIAGNOSTIC COUPLER

Diagnostic

2шт.

15

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 16 - 17

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

18

87552630

TUBE,10.2 mm ID x 12.7 mm OD x 480, 120 mm L

Rear Axle Brake

1шт.

19

372031A3

FITTING

Declutch

1шт.

20

408004A1

GUARD ASSY.

1шт.

21

895-11020

WASHER,M20 x 37 x 3

2шт.

22

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

2шт.

23

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

24

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

27

87476354

HOSE ASSY.,12.7mm ID x 2843mm L, SAE 100R1

Front Axle Brake

1шт.

28

87620430

HOSE ASSY.

Rear Axle Brake

1шт.
