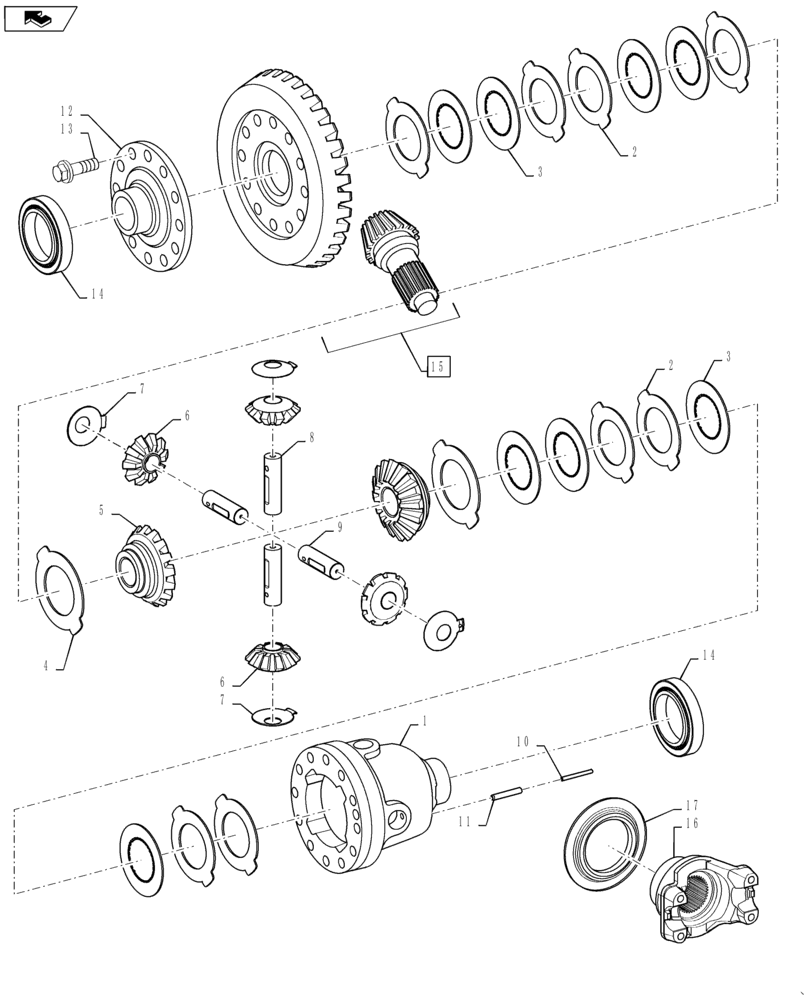

Запчасти Case 521F (27.106.02) - REAR AXLE CARRIER, LIMITED SLIP (27) - REAR AXLE SYSTEM

1

84496901

HOUSING

Differential

1шт.

2

87742939

CLUTCH PLATE

1.8mm Outer, Select a Combination of Nine Outer Discs for Proper Pack Width, Per Service Manual

9шт.

2

87742940

CLUTCH PLATE

1.9mm Outer, Select a Combination of Nine Outer Discs for Proper Pack Width, Per Service Manual

9шт.

2

87742941

DISC,Axle, Friction

2.0mm Outer, Select a Combination of Nine Outer Discs for Proper Pack Width, Per Service Manual

9шт.

3

87742942

CLUTCH DISC

Inner

8шт.

4

87742943

THRUST WASHER

2шт.

5

84496911

GEAR

Bevel Axle

2шт.

6

84496902

GEAR

Bevel Differential

4шт.

7

84496904

WASHER

Thrust

4шт.

8

84496905

SHAFT

Long

1шт.

9

84496906

SHAFT

Short

2шт.

10

84475471

ROLL PIN

Slotted

2шт.

11

87742960

PIN

Slotted

2шт.

12

87742961

COVER

Housing

1шт.

13

184716A1

SCREW

12шт.

14

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

2шт.

15

87743751

BEVEL GEAR

Set

1шт.

16

87430406

HOSE ASSY.

Input

1шт.

17

87742958

PROTECTOR

Cover

1шт.
