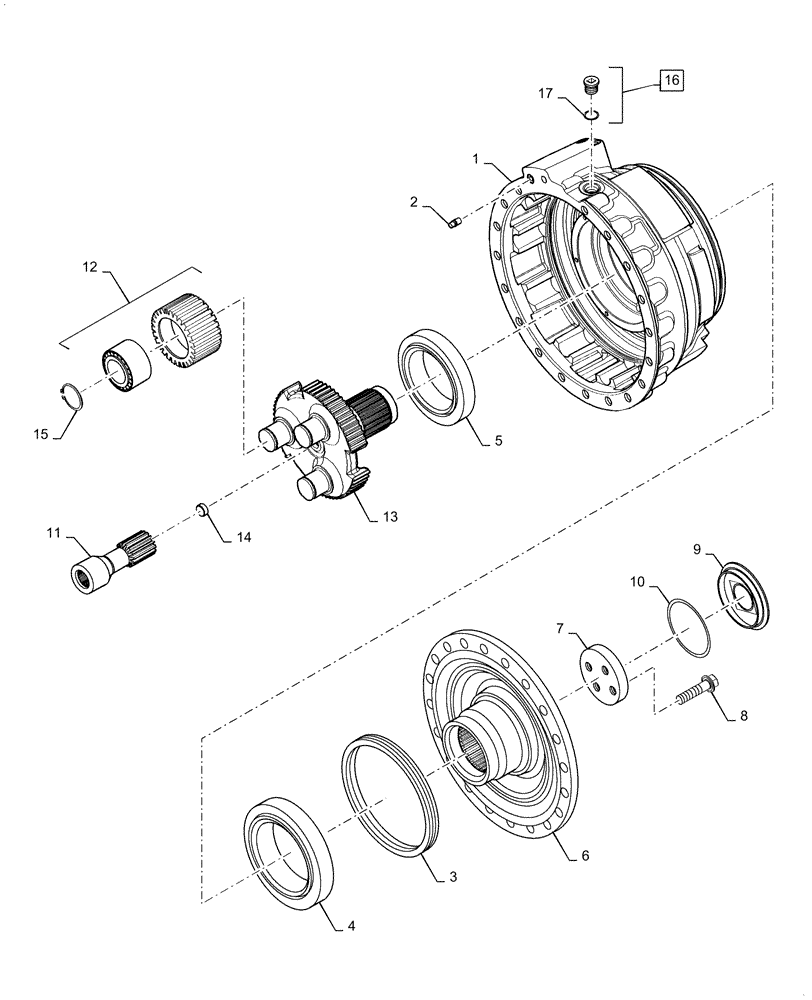

Запчасти Case 521F (25.310.01) - FRONT AND REAR AXLE DRIVE OUTPUT LIMITED SLIP (25) - FRONT AXLE SYSTEM

1

84496956

HOUSING

Axle

1шт.

2

76088742

VALVE

2шт.

3

84150634

SEAL

SEALRING Wheel End

1шт.

4

84329409

TAPERED BEARING

1шт.

5

87743209

TAPERED BEARING

1шт.

6

87743210

SHAFT

Output

1шт.

7

87743211

COVER

1шт.

8

84329412

LOCK SCREW

3шт.

9

8603567

COVER

Wheel Flange

1шт.

10

8603527

O-RING

1шт.

11

84395432

SUN GEAR

1шт.

12

84497842

GEAR

Planetary

3шт.

13

84395439

SHAFT, PLANETARY CAR

Planetary Carrier

1шт.

14

8603571

PLUG

1шт.

15

87358698

SNAP RING

3шт.

16

84401558

PLUG

Includes O-Ring

1шт.

17

8603208

O-RING,2mm Thk x 21mm ID

1шт.
