(25.102.02) - FRONT DIFFERENTIAL LIMITED SLIP

Запчасти Case 521F (25.102.02) - FRONT DIFFERENTIAL LIMITED SLIP (25) - FRONT AXLE SYSTEM

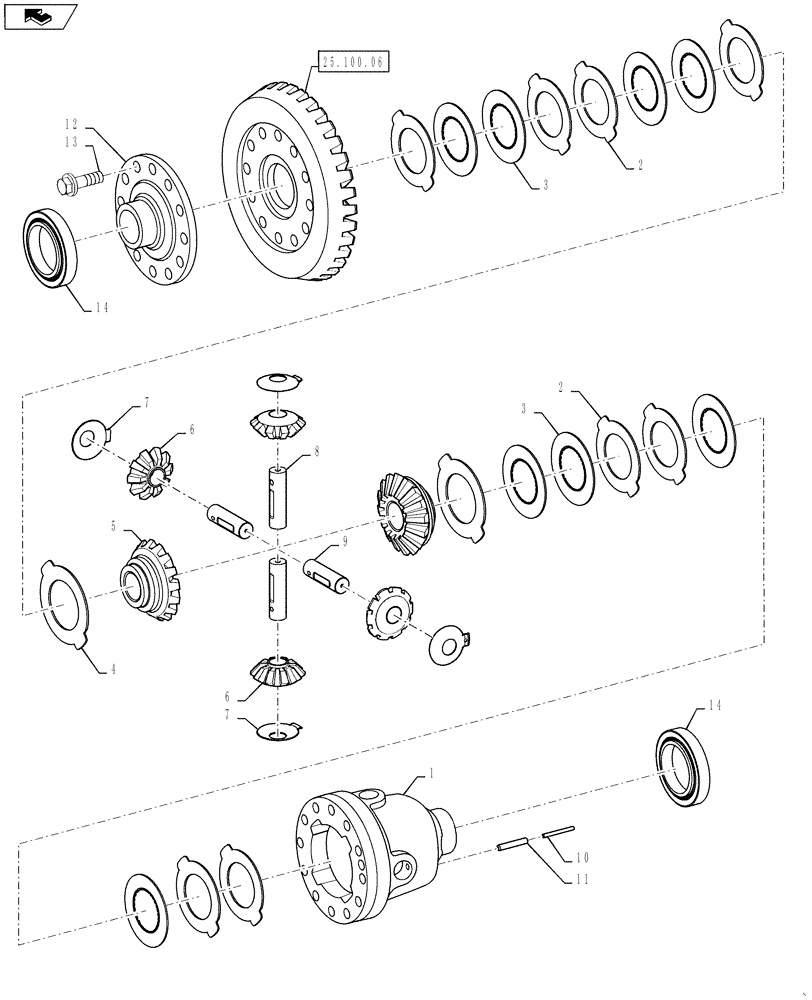

Схема запчастей Case 521F - (25.102.02) - FRONT DIFFERENTIAL LIMITED SLIP (25) - FRONT AXLE SYSTEM
11
14
7
2
9
13
home
6
6
25.100.06
7
3
14
2
5
10
12
1
3
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84496901

HOUSING

Differential Case

1шт.

2

87742939

CLUTCH PLATE

CLUTCH DISK 1.8mm Outer

9шт.

2

87742940

CLUTCH PLATE

CLUTCH DISK 1.9mm Outer

9шт.

2

87742941

DISC,Axle, Friction

CLUTCH DISK 2.0mm Outer

9шт.

3

87742942

CLUTCH DISC

CLUTCH DISK Inner

8шт.

4

87742943

THRUST WASHER

2шт.

5

84496911

GEAR

Bevel Axle

2шт.

6

84496902

GEAR

Bevel Diff

4шт.

7

84496904

WASHER

Thrust

4шт.

8

84496905

SHAFT

1шт.

9

84496906

SHAFT

Short Pin

2шт.

10

84475471

ROLL PIN

2шт.

11

87742960

PIN

2шт.

12

87742961

COVER

Housing

1шт.

13

184716A1

SCREW

12шт.

14

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

2шт.
