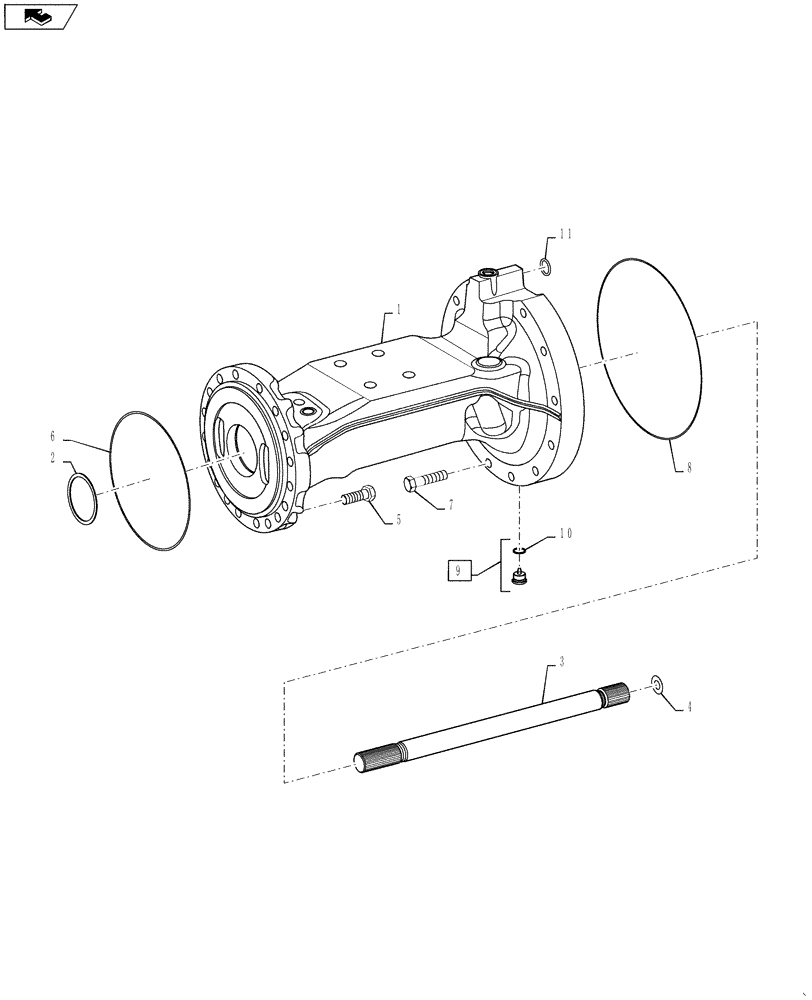

Запчасти Case 521F (25.100.08) - FRONT AXLE HOUSING LIMITED SLIP AND LOCKING (25) - FRONT AXLE SYSTEM

*

84358914R

REMAN-FRONT AXLE

Reman Front Axle Assy. w/Limited Slip

1шт.

*

84358914C

CORE-FRONT AXLE

Return Number

1шт.

*

84358923R

REMAN-FRT AXLE w/DL

Reman Front Axle Assy. w/Diff. Lock

1шт.

*

84358923C

CORE-FRT AXLE w/DL

Return Number

1шт.

1

84395757

AXLE HOUSING

1шт.

2

87742964

SHIM,0.8mm Thk

0.8mm

1шт.

2

87742965

SHIM,0.9mm Thk

0.9mm

1шт.

2

87743201

SHIM,1mm Thk

1.0mm

1шт.

2

87743202

SHIM,1.1mm Thk

1.1mm

1шт.

2

87743203

SHIM,1.2mm Thk

1.2mm

1шт.

2

84150625

SHIM,0.6mm Thk

0.6MM

1шт.

2

84150626

SHIM,0.65mm Thk

0.65MM

1шт.

2

84150627

SHIM,0.7mm Thk

0.7MM

1шт.

2

84150628

SHIM,0.75mm Thk

0.75MM

1шт.

2

84150629

SHIM,0.85mm

0.85MM

1шт.

2

84150630

SHIM,0.95mm Thk

0.95MM

1шт.

2

84150632

SHIM,1.05mm Thk

1.05MM

1шт.

2

84150633

SHIM,1.15mm Thk

1.15MM

1шт.

2

84496962

SHIM

1.15MM

1шт.

3

87743204

SHAFT

Stub

1шт.

4

8603730

SHIM,0.2mm Thk

1шт.

4

8603669

SHIM,0.4mm Thk

1шт.

4

8603731

SHIM,1mm Thk

1шт.

4

8603732

SHIM,1.5mm Thk

1шт.

5

71448875

SCREW

18шт.

6

87743205

O-RING

1шт.

7

514-1107

BOLT,Hex, M18 x 1.5 x 85mm, Cl 10.9

12шт.

8

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

1шт.

9

84352083

PLUG

1шт.

10

8603208

O-RING,2mm Thk x 21mm ID

1шт.

11

87746031

O-RING

1шт.
