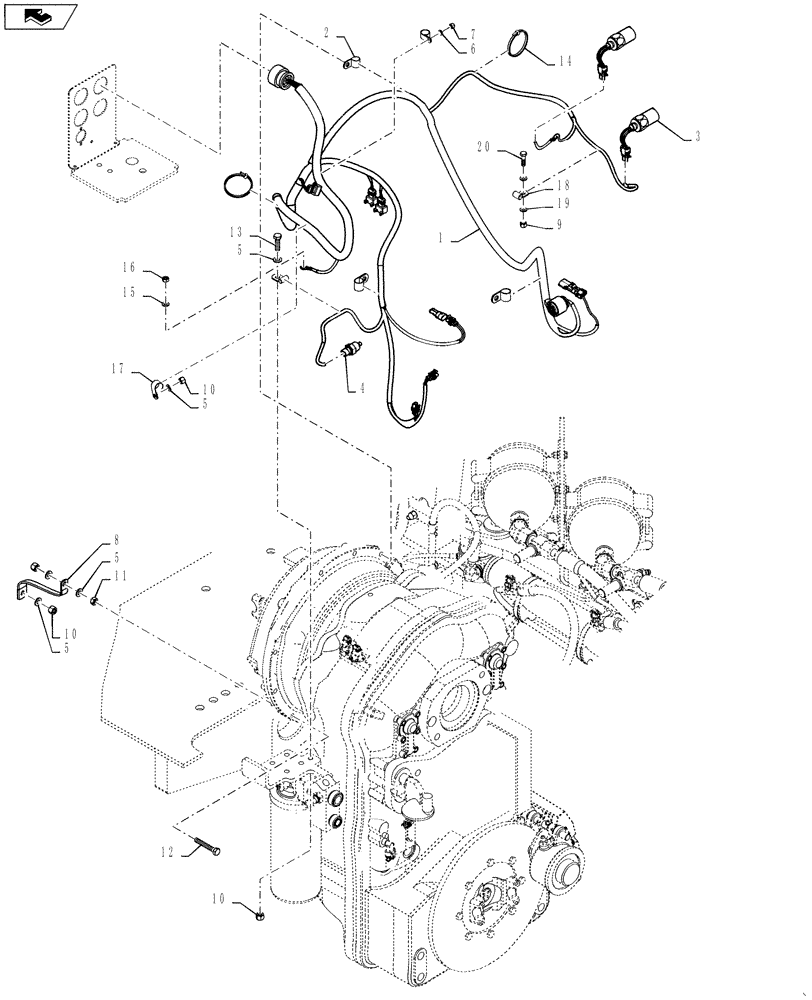

Запчасти Case 521F (21.135.02) - TRANSMISSION WIRE HARNESS INSTALLATION (21) - TRANSMISSION

1

84544854

WIRE HARNESS

See Fig 55.100.06 (01)

1шт.

2

515-21190

CLAMP,3/4", Insul, 1/4" Bolt

1шт.

3

87728742

SWITCH

2шт.

4

321446A1

SENSOR

Redundant Brake

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

7

832-10406

NUT,M6 x 1, Cl 8

1шт.

8

79028421

GROUND CABLE

1шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

12

627-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd

1шт.

13

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

15

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

16

253347A1

NUT,Hex, M10 x 1.5

1шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

18

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

20

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.
