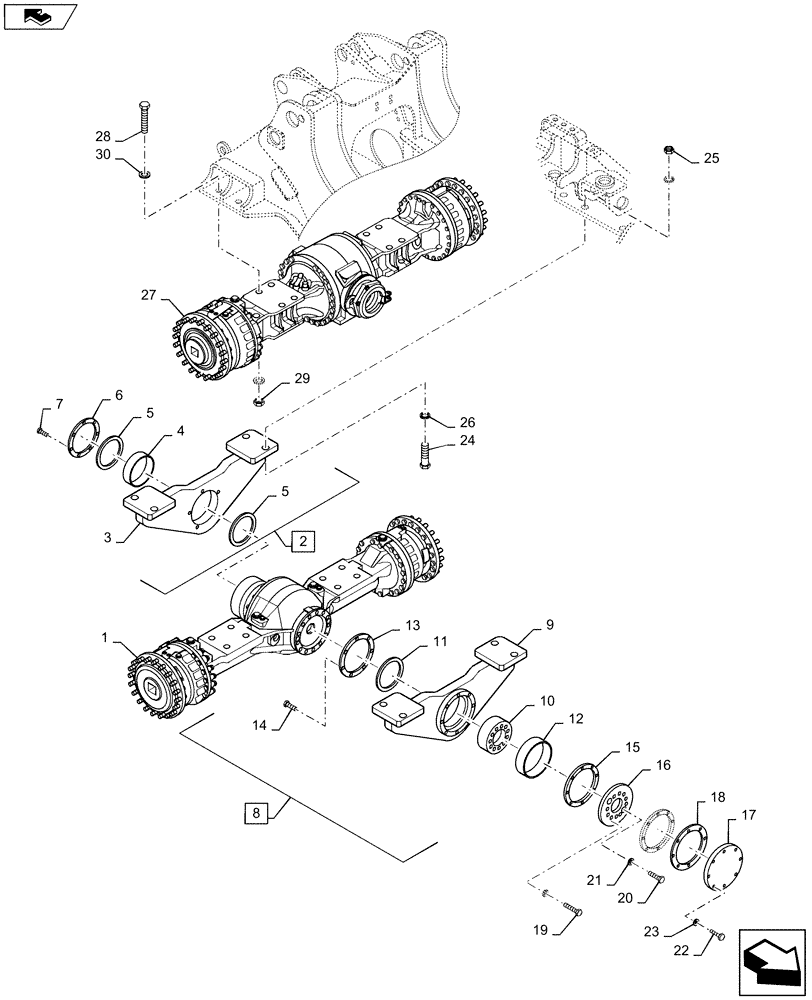

Запчасти Case 1221F (25.100.AD) - FRONT AND REAR AXLE MOUNTING (25) - FRONT AXLE SYSTEM

1

81LQ-20500

AXLE

Assembly, Rear

1шт.

1

81LQ-20500R

REMAN-REAR AXLE

Assembly, Rear

1шт.

1

81LQ-20500C

CORE-REAR AXLE

Return Number

1шт.

2

81LQ-21000CY

SUPPORT

Front, Incl 3 - 7

1шт.

3

81LQ-21010

SUPPORT

1шт.

4

81LQ-21050

BUSHING

1шт.

5

81LQ-21060

SEAL

Dust

2шт.

6

81LQ-21070

COVER

1шт.

7

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

6шт.

8

81LQ-21100CY

SUPPORT

Rear, Incl 9 - 14

1шт.

9

81LQ-21110

SUPPORT

1шт.

10

81LQ-21170

SHAFT

Pivot

1шт.

11

81LC-20130

SEAL

Dust

1шт.

12

81LQ-20240

BUSHING

1шт.

13

81LC-20280

COVER

1шт.

14

S035-081556

BOLT

Bolt With Washer

8шт.

15

81LC-20240

WASHER

Thrust

2шт.

16

81LQ-21180

DISC

1шт.

17

81LC-20260

COVER

1шт.

18

81LC-20270

SHIM

2шт.

19

S017-20145D

BOLT

10шт.

20

S017-20125D

BOLT

2шт.

21

S441-200006

WASHER

12шт.

22

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Bolt

8шт.

23

S441-160006

WASHER

8шт.

24

S018-361306

BOLT

8шт.

25

S206-36100B

NUT

8шт.

26

896-12036

WASHER,39mm ID x 66mm OD x 6mm Thk

Washer - Hardened

16шт.

27

81LQ-10010

AXLE

Assenbly, Front

1шт.

27

81LQ-10010R

REMAN-AXLE DIF w/LTD

Assenbly, Front

1шт.

27

81LQ-10010C

CORE-AXLE DIFF w/LTD

Return Number

1шт.

28

81LQ-10030

BOLT

8шт.

29

S206-36100B

NUT

8шт.

30

896-12036

WASHER,39mm ID x 66mm OD x 6mm Thk

Washer - Hardened

16шт.
