(90.151.AN) - CAB CONSOLE

Запчасти Case 1221F (90.151.AN) - CAB CONSOLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

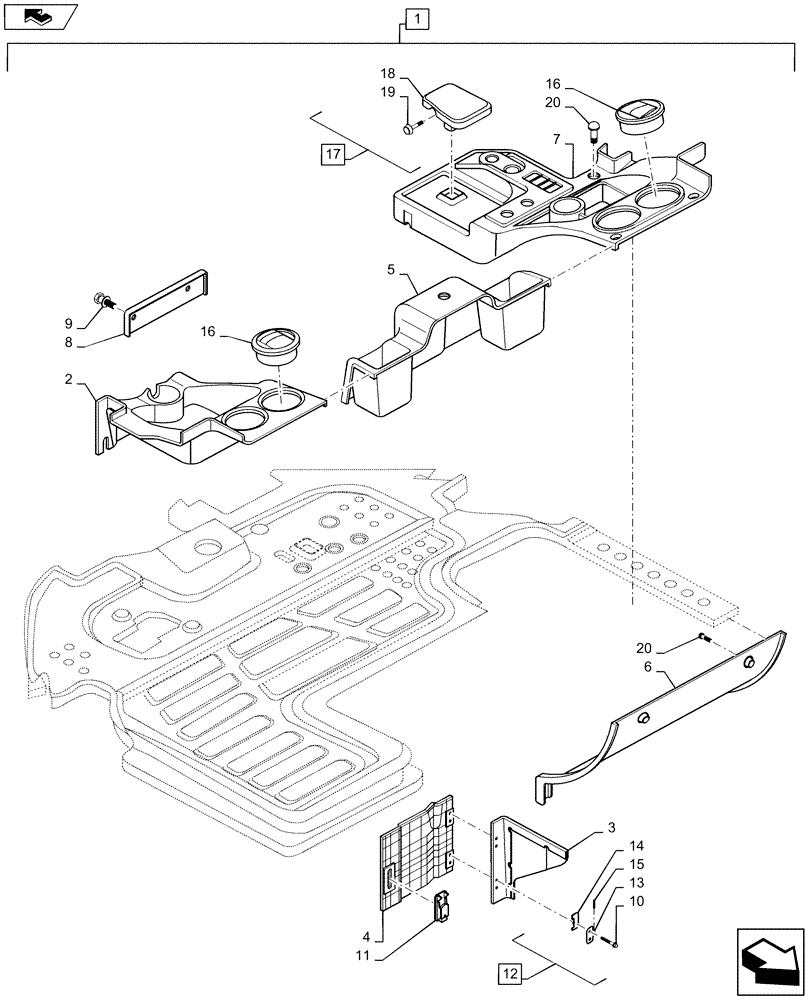

Схема запчастей Case 1221F - (90.151.AN) - CAB CONSOLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
20
8
18
20
19
7
16
16
14
3
5
15
6
home
17
12
9
13
2
10
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

71LM-30206

CONSOLE

Console Box Assembly, Incl 2 - 16

1шт.

2

71LM-30214

CONSOLE

Left Hand Up

1шт.

3

71LM-30223

CONSOLE

Left Hand Side

1шт.

4

71LM-30233

CONSOLE

Left Hand Front

1шт.

5

71LM-30283

CONSOLE

Right Rear Up

1шт.

6

71LM-30293

CONSOLE

Right Rear Low

1шт.

7

71LM-30314

CONSOLE

Right Hand RR

1шт.

8

71LM-30363

COVER

Seat Cover

1шт.

9

71LN-29011

SCREW

Cap Screw

1шт.

10

S002-06015B

SCREW

Screw-Trus Head

1шт.

11

71LM-01220

LATCH

Latch Assembly

1шт.

12

71LM-30240

HINGE

Hinge AssemblyIncl 13 - 15

2шт.

13

71LM-30253

HINGE

Left Hand

2шт.

14

71LM-30263

HINGE

Left Hand

2шт.

15

71LM-30270

HINGE

Hinge

2шт.

16

71Q6-22400

NOZZLE

Air Vent

2шт.

17

71LM-30804

ARMREST

Wrist Rest Assembly, Incl 18 - 19

1шт.

18

71LM-30960

FOAM

Foam Wrist Rest

1шт.

19

71LM-30940

KNOB

Knob Wrist Rest

1шт.

20

S002-060166

SCREW

Screw - Trushead

22шт.
